IDEC
HS6E-M44B05-G
Safety Interlock Switch, Subminiature, Main 1NC+1NC, 24VDC, Solenoid, Spring Lock, 5m Cable, NCNR
$228.72
HS6E-M7Y4B05-G
Alt: HS6E Series, Non-Cancellable, No Returns
$228.72
Safety Interlock Switch, Subminiature, Solenoid Lock, 5m Cable, NCNR
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

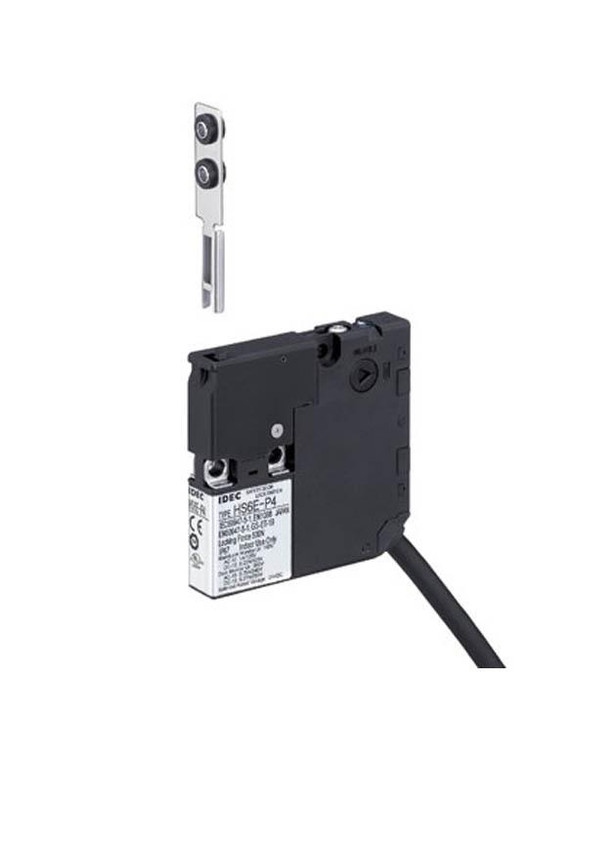

The HS6E series safety interlock switch provides a cost effective solenoid door interlock in a compact housing.
A total of 4 circuit configurations for both spring and solenoid lock types can be found with standard 3 meter cable. Along with flexible mounting directions you can have up to 4 actuation entry points and 5 different actuator keys, the HS6E can be used to meet any of your simplest safety applications.
Spring Lock Type
Automatically locks the actuator without power to the solenoid. Unlocking is accomplished by energizing the solenoid, providing a high level of safety. Manual unlocking is possible in the event of power failure or maintenance.
Solenoid Lock Type
The actuator is locked only when actuator is in place and is solenoid energized. The actuator is unlocked when de-energized.
- Thinnest solenoid type interlock switch in the world 15mm-wide
- Flexible installation- reversible mounting and angled cable allow four actuator insertion directions
- Energy saving- 24V DC/110 mA
- Manual unlocking possible on three sides
- LED indicator shows solenoid operation
- Standard 3m cable (1m and 5m cable available on request)
- Only proprietary actuators can be used, preventing unauthorized access (ISO14119, EN1088)
- 500N min actuator locking strength (GS-ET-19)
- NC contacts are direct opening (IEC/EN60947-5-1)
- IP67 (IEC60529)
- 15-mm-wide, thinnest solenoid type interlock switch in the world
- Flexible installation- reversible mounting and angled cable allow four actuator insertion directions
- Energy saving- 24V DC/110 mA
- Manual unlocking possible on three sides
- LED indicator shows solenoid operation
- Standard 3m cable (1m and 5m cable available on request)
- Only proprietary actuators can be used, preventing unauthorized access (ISO14119, EN1088)
- 500N min actuator locking strength (GS-ET-19)
- NC contacts are direct opening (IEC/EN60947-5-1)
- IP67 (IEC60529)
