Safety Interlock Switch, Subminiature, 2 NC, 3m Cable, 30x15x78mm Housing, IP67, Direct Opening Contacts; Opening the Door Forces the Contacts to Disconnect Even if the Contacts are Welded (IEC/ENC60947-5-1)

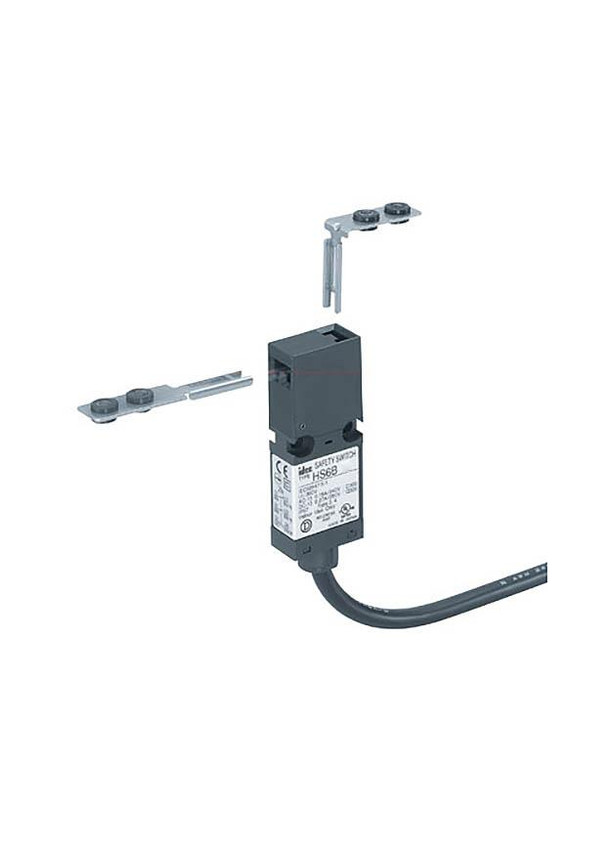

IDEC HS6B is a subminiature safety interlock switch that is the smallest three-contact enabling switch currently on the market! It will fit in the tightest areas and the design allows the highest level of safety by having 3 total contacts; 2 dual load contacts plus a monitoring contact (as per ISO13849-1, EN954-1).
Two key entrances provide flexibility for installation options.
30x15x78mm housing
Intgral molded cable reduces wiring time
IP67 IEC60529 watertight sealin
Direct Opening Action: Opening the door forces the contacts to disconnect even if the contacts are welded (IEC/ENC60947-5-1)
Keys comply with ISO14119 and EN1088
30x15x78mm housing
Integral molded cable reduces wiring time
IP67 (IEC60529) watertight sealing (contact is sealed; housing allows drainage)
Direct Opening Action: Opening the door forces the contacts to disconnect even if the contacts are welded (IEC/ENC60947-5-1)
Safety Interlock Switch, Subminiature, Safety Door, 1 NC-2 NC, 5m Cable, 30x15x78mm Housing, IP67, Direct Opening Contacts; Opening the Door Forces the Contacts to Disconnect Even if the Contacts are Welded (IEC/ENC60947-5-1)
Safety Interlock Switch, Subminiature, Safety Door, 2 NC, 5m Cable, 30x15x78mm Housing, IP67, Direct Opening Contacts; Opening the Door Forces the Contacts to Disconnect Even if the Contacts are Welded (IEC/ENC60947-5-1)
Safety Interlock Switch, Subminiature, Safety Door, 1 NO-1 NC, 5m Cable, 30x15x78mm Housing, IP67, Direct Opening Contacts; Opening the Door Forces the Contacts to Disconnect Even if the Contacts are Welded (IEC/ENC60947-5-1)
Safety Interlock Switch, Subminiature, Safety Door, 3 NC, 1m Cable, 30x15x78mm Housing, IP67, Direct Opening Contacts; Opening the Door Forces the Contacts to Disconnect Even if the Contacts are Welded (IEC/ENC60947-5-1)
Safety Interlock Switch, Subminiature, Safety Door, 3 NC, 5m Cable, 30x15x78mm Housing, IP67, Direct Opening Contacts; Opening the Door Forces the Contacts to Disconnect Even if the Contacts are Welded (IEC/ENC60947-5-1)
