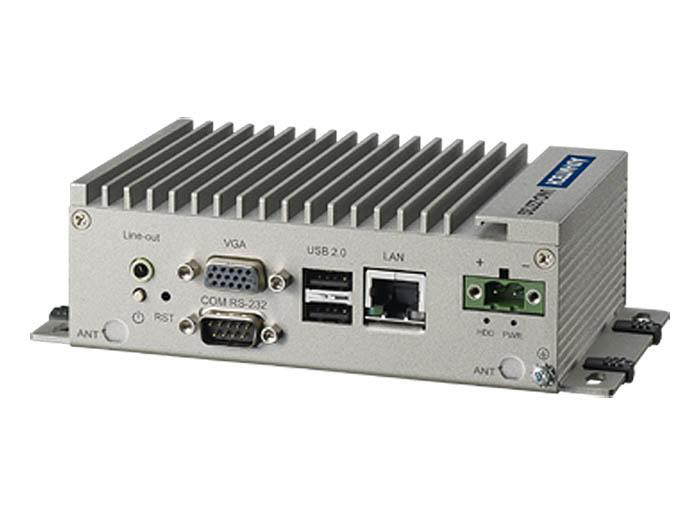

UNO-2272G-J2AE

Features Include:

• CPU: Intel® Celeron J1900 2.0 Ghz Quad-Core
• Graphics Engine: Intel® HD Graphics
• Memory: 1 x x SO-DIMM with 2 GB DDR3L 1333 MHz
• OS Support: Microsoft® Windows 10 2019 LTSC, WES7, Linux
• Power Input: 24 VDC ±20%
• Storage: 1 x half-size mSATA
• Audio: Line-Out
• Displays: 1 x HDMI
• Expansion: 2 x Full-size mPCIe Slot
• LAN Ports: 1 x 10/100/1000 Mbps
• Shock Protection: 50 G, half sine
• Vibration Protection: 2 Grms, random
• Power Connector: 1 x 2-Pin Terminal Block
• Serial Ports: 1 x RS-232/422/485
• USB Ports: 2 x USB 2.0, 1 x USB 3.0
• Dimension (W x H x D): 157 x 88 x 50 mm
• Enclosure: Aluminum housing
• Intel® Atom™ N2800/J1900 Processors with 2GB DDR3/DDR3L Memory
• Compact with Fanless Design
• Rubber Stopper Design with Captive Screw
• Diverse system I/O and Isolated Digital I/O by iDoor Technology
• Supports Fieldbus Protocol by iDoor Technology
• Supports MRAM by iDoor Technology

Technical Information:

• Advantech UNO-2272G Palm-Size Automation Computer Technical Data
• Advantech UNO-2272G Palm-Size Automation Computer AdvLinuxTU User Manual
