UIRT/C-K-440F, Un-Shielded

UIRT/C-K-440F, Un-Shielded

Alt: 150047, (Was UIRT/C-K-440F)

$119.00

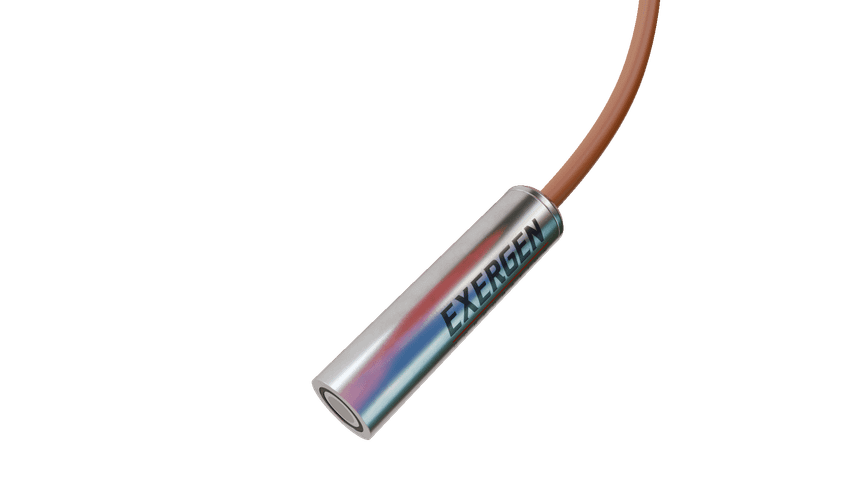

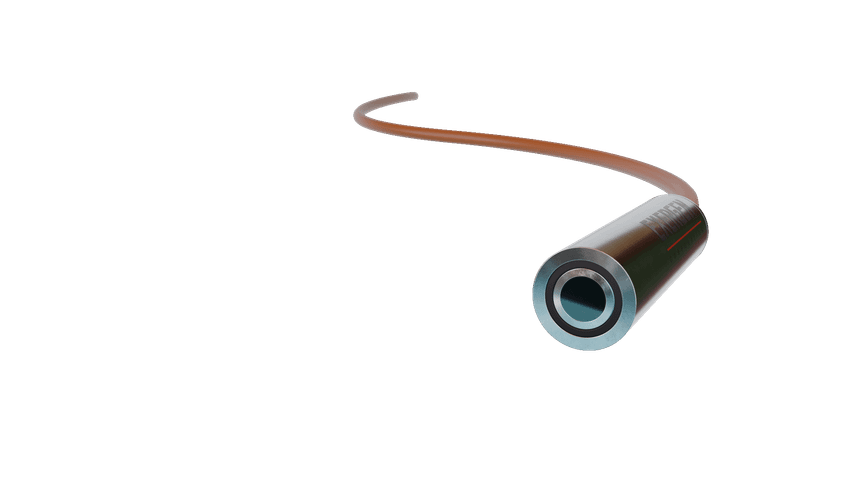

Micro IRt/c, K Type, 440F, Stainless Steel, 1:2 FOV, Micro Sized, Unshielded Cable

Weight:
0.10 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Infrared T/C, K Type, 440F, SS, 1:2 FOV Micro Sized, Unshielded Cable

Features Include:

  • Ambient Temperature Range: -40 to 212°F (-40 to 100 °C)
  • Sensing Range: 0 to 975°F (-18 to 524 °C) with linearization at readout
  • Field-of-View: approximately 1:2 (100°)
  • Minimum Spot Size: 3 mm (.1”)
  • Spectral Response: 5.5 to 20 µm
  • Output: K type thermocouple
  • Cable: 3 feet of unshielded, duplex insulated, type K, 24 AWG, PFA jacket rated to 500 o F (260 o C) (Shielded cable available upon request)
  • Impedance: 15 – 40 Kohms, varies depending on temperature range
  • Resolution: Approximately 0.0003°C (Johnson Noise limited)
  • Response Time: 50 millisecond time constant (typical)
  • Accuracy (Interchangeability): 1% to factory calibration conditions
  • Dimensions: 0.25” (6.3 mm) Dia. x 1.0” (25.4 mm)
  • Weight: Approximately 30 grams (1 oz.)
  • Input Device Compatibility: It is recommended to use input devices with less than 1 nA of leakage current to minimize offsets, and sensor break detection should be set to 40 kohm maximum.
  • Housing: Stainless steel, hermetically sealed, exceeds NEMA 4X, IP67
