Exergen
IRT/C-K-280F/140C
Infrared T/C, K Type, 280°F/140°C, Stainless Steel, 1:1 FOV, Regular Mount, Pre Calibrated
$303.45
IRT/C.03-K-280F/140C
Alt: 114265
$303.45
Infrared T/C, K Type, 280°F/140°C, Stainless Steel, 3:1 FOV, Unshielded
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Exergen has three main divisions; consumer medical, professional medical and industrial automation products. We are your authorized Exergen distirbutor for their industrial division.
Exergen is the leader in infrared thermocouples and has the world's only self powered one. They also offer microscanners and thermal switches. Their products are invented, assembled, tested and packaged in the USA! Exergen is headquartered in Watertown, Massachusetts.
Features Include:
- Temperature Range: -50 to 550 °F (-45 to 287 °C)
- Ambient Temperature Range: 0 to 160 °F (-18 to 70 °C)
- Field of View: 3:1 (17°) approximately
- Minimum Spot Size: 0.25" (6 mm)
- Spectral Response: 6.5 to 14 µ
- Output Impedance: 4 to 8 Kohms approximately
- Cable: Thermocouple extension grade, PVC jacket, unshielded
- Housing: High strength ABS, hermetically sealed, exceeds NEMA 4, 4x; IP65, 67, intrinsically safe. Two locknuts supplied

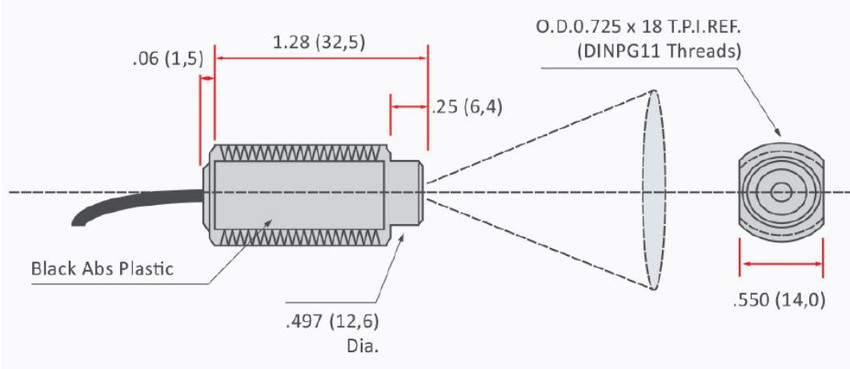

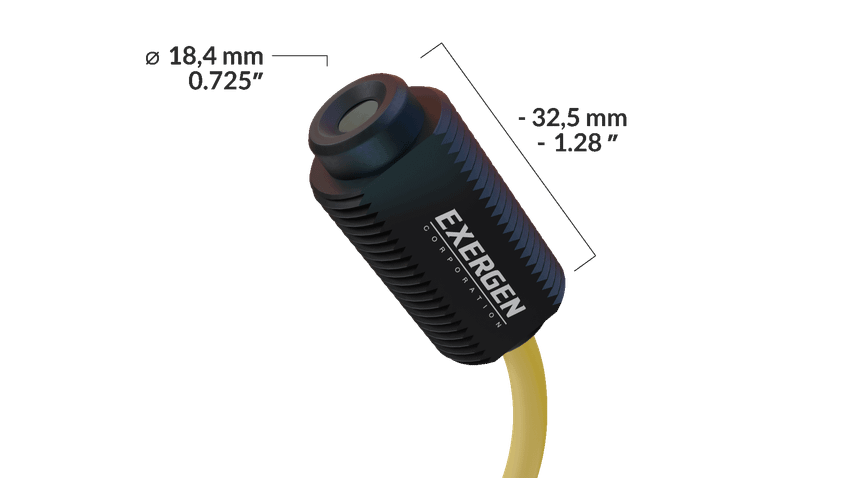

- Dimensions: 1.28" x .71" Diameter (32.5 x 20 mm)
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Exergen
IRT/C.3X-K-280F/140C
Infrared T/C, K Type, 280°F/140°C, Stainless Steel, 3:1 FOV, Air Purge, Shielded, Linear from 240-330°F
$425.00
Exergen
IRT/C-J-280F/140C
IRt/c, Stainless Steel; 1:1 FOV; Shielded J t/c Cable, Linear from 240-330°F, The Original IRt/c
$303.45
Exergen
IRT/C.5-J-280F/140C
Infrared T/C, J Type, 280°F/140°C, Stainless Steel, 5:1 FOV, Air Purge/Aircool, Mounting Holes With Screws
$561.85
Exergen
IRT/C.3SV-J-280F/140C
Infrared T/C, J Type, 280°F/140°C, Stainless Steel, 3:1 FOV, Air Purge, Bracket and Locknuts, Linear 240-330°F
$500.65
Exergen
IRT/C.03-K-80F/27C
Infrared T/C, K Type, 80°F/27°C, Stainless Steel, 3:1 FOV, 32° - 120°F, Unshielded
$303.45
Exergen
UIRT/C-K-280F-Shielded
Micro IRt/c, Stainless Steel; 1:2 FOV; Shielded K t/c Cable, 280°F/140°C, Linear from 240-330°F
$141.10
Exergen
IRT/C.10A-K-1500HIE
Adjustable Infrared T/C, K Type, Stainless Steel, 10:1 FOV, Non Metal, Air Purge/Air Cool, -50-2500°F
$697.00
Exergen
IRT/C.10A-K-1600LOE
Adjustable Infrared T/C, K Type, Stainless Steel, 10:1 FOV, Metal Surfaces, Air Purge/Air Cool, 500 to 2500F
$697.00
