IRT/C.SV-K-240F/120C

IRT/C.SV-K-240F/120C

Alt: 113500

$332.35

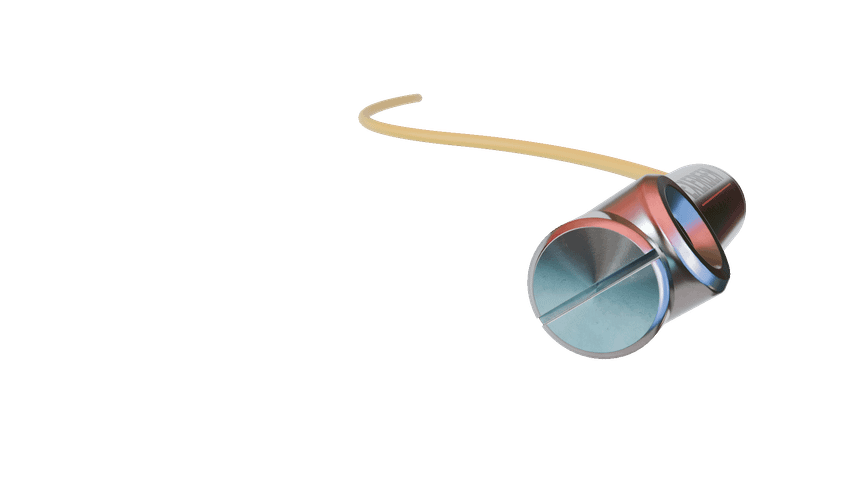

Infrared T/C, K Type, 240°F/120°C, Stainless Steel, 5:1 FOV, Side View, Shielded K Cable, 180-250°F

Weight:
0.10 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

The world’s only self powered infrared thermocouple. Pre-calibrated IRt/c's are best for low temperatures (< 500 °F) and non-metal or coated metal surfaces.

No active electronics, so these passive devices can not fail.

Mean Time Between Failure reports have been documented with a rate of >1,000 years between failures. The patented technology separates the IRt/c from all other non -contact temperature products. Our Exergen sensors will minimize downtime and increase your production.

The IRt/c family of pre-calibrated IRt/c's includes:

  • Series (Short ID# begin with)
  • IRt/c.01 (1141)
  • IRt/c.03 (1142)
  • IRt/c.07 (138)
  • IRt/c.10 (115)
  • IRt/c.1X (110/111)
  • IRt/c.2 (117/118/119)
  • IRt/c.3SV (130)
  • IRt/c.3x (1185/1194)
  • IRt/c.5 (120/121/122)
  • IRt/c.SV (112/113/114)
  • IRt/c- (109/110/111)
  • microIRt/c (uIRt/c #'s - 150)

Learn even more about Exergen Sensors here!

Features Include:

  • Sensing Range: -50 to 1200 °F (-45 to 650 °C)
  • Ambient Temperature Range: 0 to 212 °F (-18 to 100 °C)
  • Optimum Range Selections: Eight models per t/c type
  • Field-of-View: 1:1 (60°) approximately
  • Minimum Spot Size: 0.3" (8 mm)
  • Spectral Response: 6.5 to 14 µ
  • Output Impedance: 3 Kohms approximately
  • Cable: Twisted shielded pair of base thermocouple material (J, K, etc.), 3 ft. (.9) m) standard length, Teflon sheathed, rated to 392 ºF (200 ºC) continuous service.

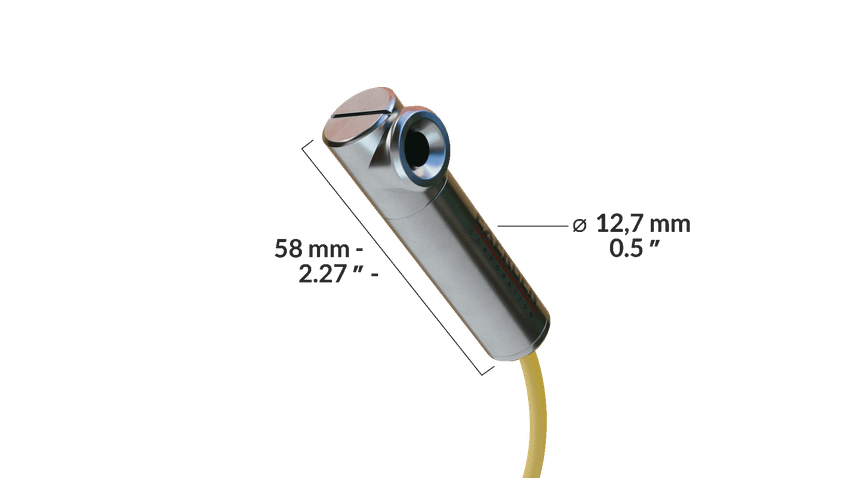

  • Dimensions: 2.27" x .50" Diameter (57.8 x 12.7 mm)
  • Weight: 1.4 oz (40 g) with cable
  • Housing: Stainless steel, hermetically sealed, exceeds NEMA 4, 4x; IP65, 67, intrinsically safe, cable shield grounded to housing and electrically isolated from signal.
