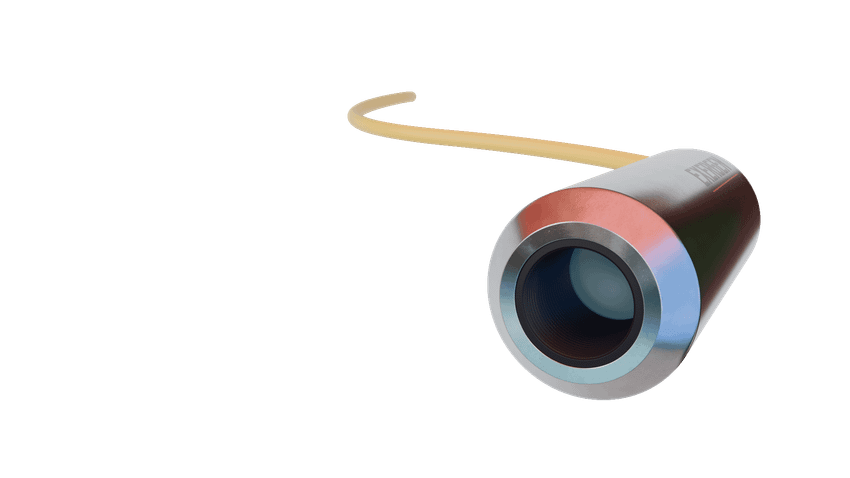

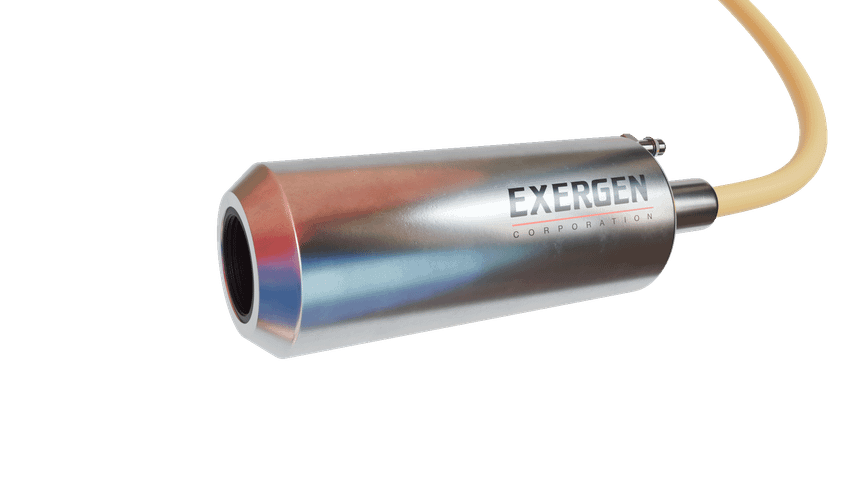

IRT/C.10-K-240F/120C

Exergen has three main divisions; consumer medical, professional medical and industrial automation products. We are your authorized Exergen distirbutor for their industrial division.



Exergen is the leader in infrared thermocouples and has the world's only self powered one. They also offer microscanners and thermal switches. Their products are invented, assembled, tested and packaged in the USA! Exergen is headquartered in Watertown, Massachusetts.

Features Include:

• Sensing Range: -50 to 1200 °F (-45 to 650 °C)
• Field-of-View: 10:1 (6°) approximately
• Minimum Spot Size: 0.8" (20 mm)
• Spectral Response: 6.5 to 14 µ
• Output Impedance: 4 to 8 Kohms approximately
• Cable: Twisted shielded pair of base thermocouple material (J, K, etc.), 3 ft. (.9) m) standard length, Teflon sheathed, rated to 392 ºF (200 ºC) continuous service.
• Dimensions: 3.76" x 1.375" Diameter (96 x 35 mm)
• Weight: 6.5 oz (184 g) with cable
• Housing: Stainless steel, hermetically sealed, exceeds NEMA 4, 4x; IP65, 67, intrinsically safe, cable shield grounded to housing and electrically isolated from signal.

Air Purge

• Built-in; cooling capacity to 400 °F (200 °C) ambient; 3', (0.9 m) polyurethane tubing provided.
• Air purge pressure: 5 psig - 20 psig (for 400 °F (200 °C) ambient).
