Exergen
IRT/C.01-J-180F/90C
Infrared T/C, J Type, ABS, 1:1 FOV, 180°F/90°C, Linear from 140-220°F, Unshielded, Light Duty with Nylon Locknuts
$195.50
IRT/C.5-J-180F/90C
Alt: 120800
$561.85
Infrared T/C, J Type, 180°F/90°C, Stainless Steel, 5:1 FOV, Air Purge/Aircool, Mounting Holes With Screws
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Exergen has three main divisions; consumer medical, professional medical and industrial automation products. We are your authorized Exergen distirbutor for their industrial division.
Exergen is the leader in infrared thermocouples and has the world's only self powered one. They also offer microscanners and thermal switches. Their products are invented, assembled, tested and packaged in the USA! Exergen is headquartered in Watertown, Massachusetts.
Features Include:
- Sensing Range: -50 to 1200 °F (-45 to 650 °C)
- Ambient Temperature Range: 0 to 400°F (-18 to 200°C)
- Optimum Range Selections: Eight models per t/c type (see Temperature Selection Guide)
- Field-of-View: 5:1 (11°) approximately
- Minimum Spot Size: 0.8" (20 mm)
- Spectral Response: 6.5 to 14 µ (2 to 20 µ with IRt/c.3XG germanium lens)
- Output Impedance: 4 to 8 Kohms approximately
- Cable: Twisted shielded pair of base thermocouple material (J,K,E,T), 3ft (.9m) std length, Teflon sheathed, rated to 392°F (200°C) continuous service

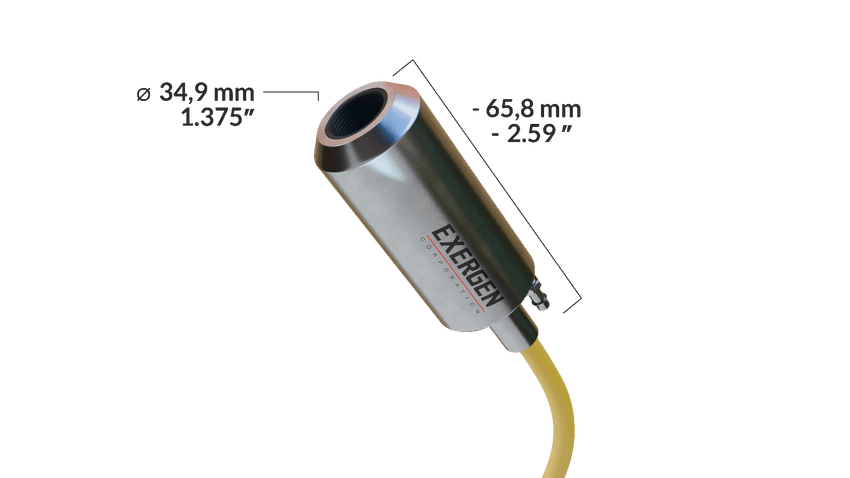

- Dimensions: 3.4” x 1.375” Dia. (86 x 35mm)
- Weight: 1.4 oz (40 g) with cable
- Housing: Stainless steel, hermetically sealed, exceeds NEMA 4,4X; IP65, 67, cable shield grounded to housing and electrically isolated from signal
- Air Purge: Built-in; designed for severe paint or ink environment; 3; (0.9 m) of tubing provided.
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Exergen
IRT/C.3X-J-180F/90C
Infrared T/C, J Type, 180°F/90°C, Stainless Steel (316), 3:1 FOV, 3 Foot Shielded J Cable, Standard SS303 Housing, Linear 140-220°F
$425.00
Exergen
IRT/C.5-K-180F/90C
Infrared T/C, K Type, 180°F/90°C, Stainless Steel, 5:1 FOV, Air Purge/Aircool, Mounting Holes With Screws
$561.85
Exergen
IRT/C.3SV-K-180F/90C
Infrared T/C, K Type, 180°F/90°C, Stainless Steel, 3:1 FOV, Air Purge, Bracket and Locknuts, Linear 140-220°F
$500.65
Exergen
IRT/C.01-K-180F/90C
Infrared T/C, K Type, ABS, 1:1 FOV, 180°F/90°C, Linear from 140-220°F, Unshielded, Light Duty with Nylon Locknuts
$195.50
Exergen
IRT/C.5-J-140F/60C
Infrared T/C, J Type, 140°F/60°C, Stainless Steel, 5:1 FOV, Air Purge, Mounting Holes with Screws
$561.85
Exergen
IRT/C.5-J-280F/140C
Infrared T/C, J Type, 280°F/140°C, Stainless Steel, 5:1 FOV, Air Purge/Aircool, Mounting Holes With Screws
$561.85
Exergen
IRT/C.5-J-440F/220C
Infrared T/C, J Type, 440°F/220°C, Stainless Steel, 5:1 FOV, Air Purge/Aircool, Mounting Holes With Screws
$561.85
Exergen
IRT/C-J-340F/170C
Infrared T/C, J Type, 340°F/170°C, Stainless Steel, 1:1 FOV, Regular Mount, Pre Calibrated
$303.45
