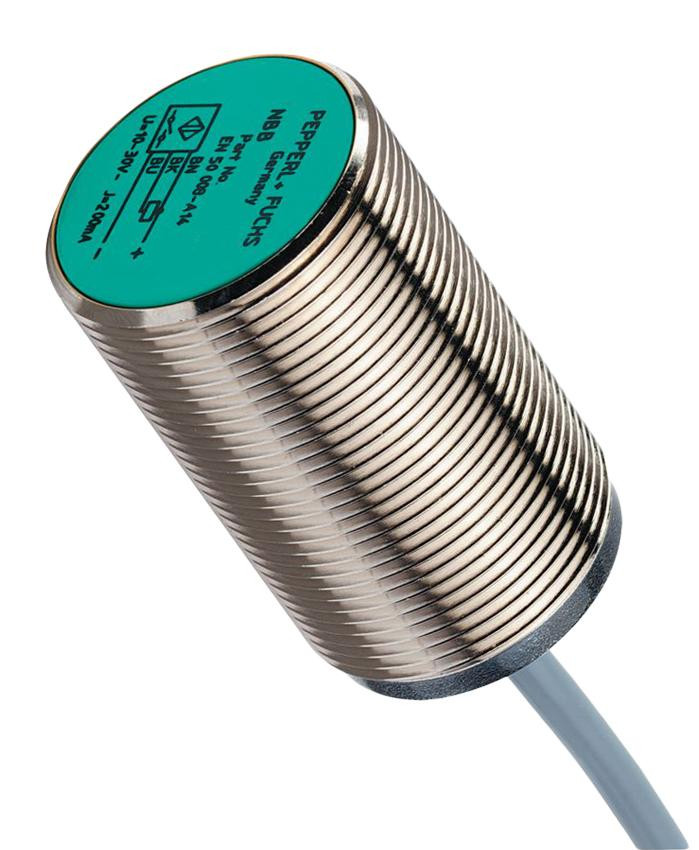

198088
Alt: NBB15-30GM50-US
$216.34
Inductive Sensors - AC/DC
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features Include:
- Switching function: Normally open (NO)
- Output type: Two-wire
- Rated operating distance: 15 mm
- Installation: flush
- Operating voltage: 20 - 250 V AC/20 - 300 V DC
- Switching frequency: 30 Hz
- Hysteresis: 3 - 15 typ. 5 %
- Operating current: 4 - 500 mA AC/DC
- Off-state current: ≤ 0.8 mA
- Operating voltage indicator: LED, green
- Switching state indicator: LED, yellow
- Connection type: cable PUR , 2 m
- Core cross-section: 0.5 mm2
- Housing material: brass, nickel-plated
- Sensing face: PBT
- Degree of protection: IP67
Technical Information:
