$279.00
IARM 12P15A3/S35L
Alt: 11081447
$359.00

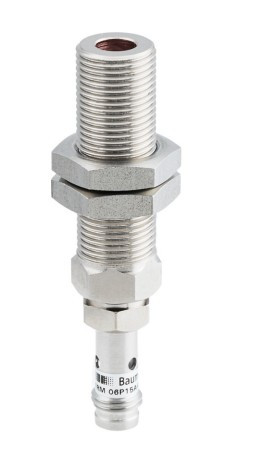

Inductive Sensor, Special Version, Flush, PNP, NO, M8, 12mm, Steel, Cylindrical Threaded
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Sensor, Special Version, Flush, PNP NO, M8, 12mm, Steel, Cylindrical Threaded
Features Include:
- Nominal Sensing Distance Sn: 1.2 mm
- PNP make function (NO)
- Mounting Type: Flush
- Output Indicator: 3 port LED red
- Switching Frequency: < 5 kHz
- Current consumption max. (no load): 12 mA
- Output Circuit: PNP make function (NO)
- Hysteresis: 3 - 25 % of Sr
- Connector M8
- Operating Temperature: -25 - 75 °C
- Protection Class: IP 67
Temperature Drift:
- ± 10 % of Sr (-25 - +50 °C)
- - 10 % - +20 % of Sr (-25 - +75 °C)
