Pepperl+Fuchs
306534-0003
Inductive Sensor, Flush, 20mm Range, Cube Style, PNP, IO-Link, RF1, M12, Returns of This Item Must Be Approved by Manufacturer
$123.77
306534-0002

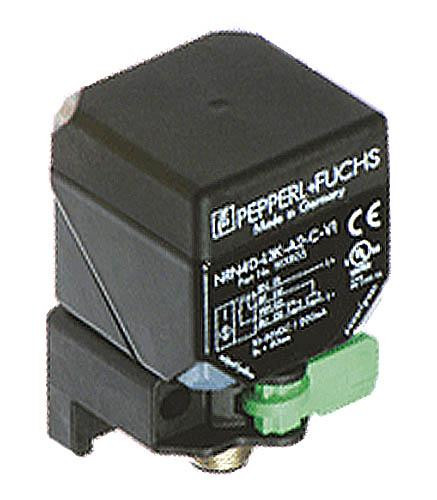

Alt: NRN40-L3K-E2-IO-C-V1
$136.85
Inductive Sensor, Non-Flush, 40mm Range, Weld-Immune, Cube Style, PNP, IO-Link, RF1, M12, Returns of This Item Must Be Approved by Manufacturer
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Features Include:
- 40 mm non-flush
- Reduction factor = 1
- Magnetic field resistant
- Weld Immune
- IO-link interface for service and process data
- Switch point mode or window mode can be set
- Switching function, stability alarm and pulse extension can be set
- 4-way LED indicator
- Quick mounting bracket
- Switching function: Normally open/closed (NO/NC) programmable
- Output type: PNP
- Rated operating distance: 40 mm (factory setting)
- Operating voltage: 10 - 30 V DC
- Connection type: Connector plug M12 x 1 , 4-pin
- Housing material: GD-ZnAl4Cu1, coated mounting flange PA6-GF35
Technical Information:
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Pepperl+Fuchs
306534-0004
Inductive Sensor, Non-Flush, 40mm Range, Cube Style, PNP, IO-Link, RF1, M12, Returns of This Item Must Be Approved by Manufacturer
$123.77
Pepperl+Fuchs
306534-0006
Inductive Sensor, Non-Flush, 40mm Range, Limit Switch Style, PNP, IO-Link, RF1, M12 4-Pin Connector, IP67, Returns of This Item Must Be Approved by Manufacturer
$170.05
Pepperl+Fuchs
306534-0005
Inductive Sensor, Flush, 20mm Range, Limit Switch Syle, PNP, IO-Link, RF1, M20 conduit, Returns of This Item Must Be Approved by Manufacturer
$151.94
Pepperl+Fuchs
306534-0001
Inductive Sensor, 20mm Range, Flush, Weld-Immune, Cube Style, PNP, RF1, IO-Link, M12
$136.85
Pepperl+Fuchs
306534-0107
Inductive Sensor, DC, Flush, 10-30VDC, 20mm Rated Operating Distance, PNP, M12 4-Pin Connector Plug, IP67
$145.90
Pepperl+Fuchs
306534-0101
Inductive Sensor, Flush, 10-30VDC, 20mm Rated Operating Distance, PNP, 200mA, 4-Wire DC Output, 4-Way LED Indicator, Reverse Polarity Protection, Quick Mounting Bracket, M12 x 1, 4-Pin Plug, IP67
$129.80
$173.92
Pepperl+Fuchs
238250-0002
Filedbus Segment Protector, Aluminum, 6 Spurs, Spring Terminal, M20 Cable Gland, Plastic
$759.18
