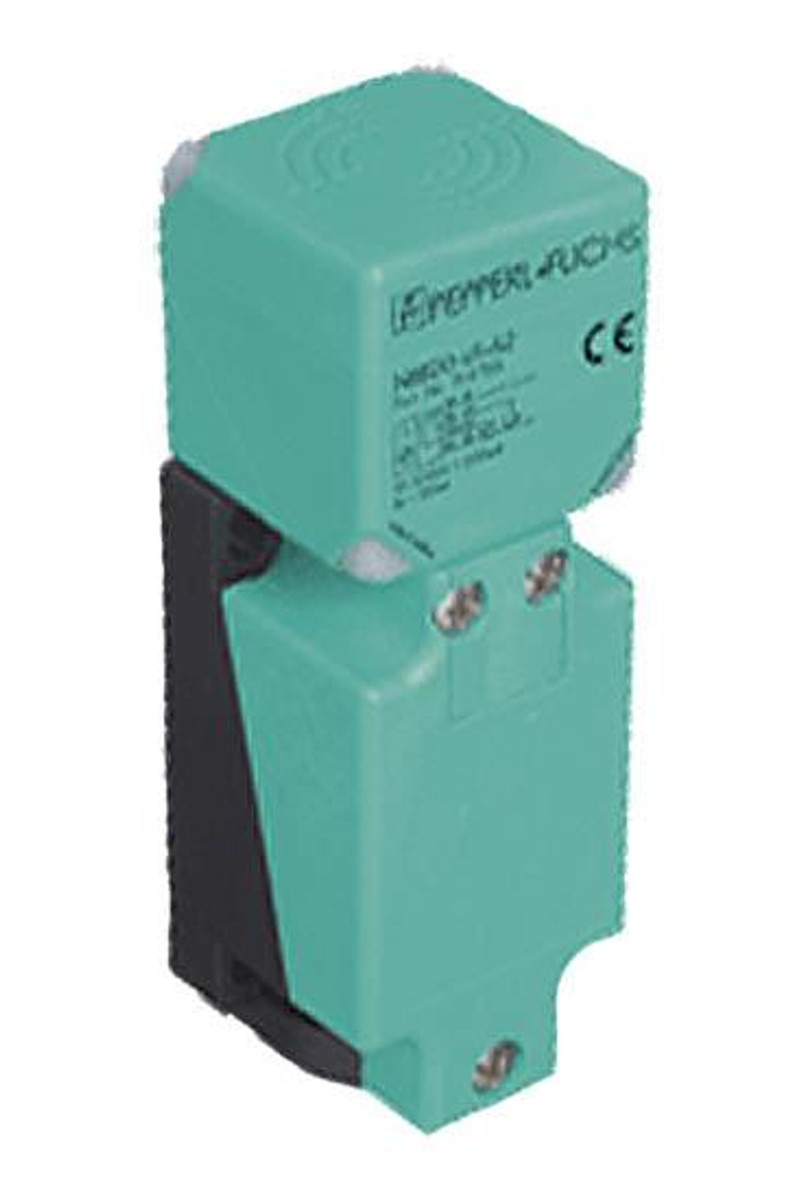

Pepperl+Fuchs
306534-0003
Inductive Sensor, Flush, 20mm Range, Cube Style, PNP, IO-Link, RF1, M12, Returns of This Item Must Be Approved by Manufacturer
$123.77
306534-0006
Alt: NRN40-U1-E2-IO-V1
$170.05
Inductive Sensor, Non-Flush, 40mm Range, Limit Switch Style, PNP, IO-Link, RF1, M12 4-Pin Connector, IP67, Returns of This Item Must Be Approved by Manufacturer
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Features Include:
- 40 mm non-flush
- Reduction factor = 1
- Magnetic field resistant
- IO-link interface for service and process data
- Switch point mode or window mode can be set
- Switching function, stability alarm and pulse extension can be set
- 4-way LED indicator
- Quick mounting bracket
- Switching function: Normally open/closed (NO/NC) programmable
- Output type: PNP
- Rated operating distance: 40 mm (factory setting)
- Operating voltage: 10 - 30 V DC
- Connection type: Connector plug M12 x 1 , 4-pin
- Housing material: PA/metal with epoxy powder coating
Technical Information:
