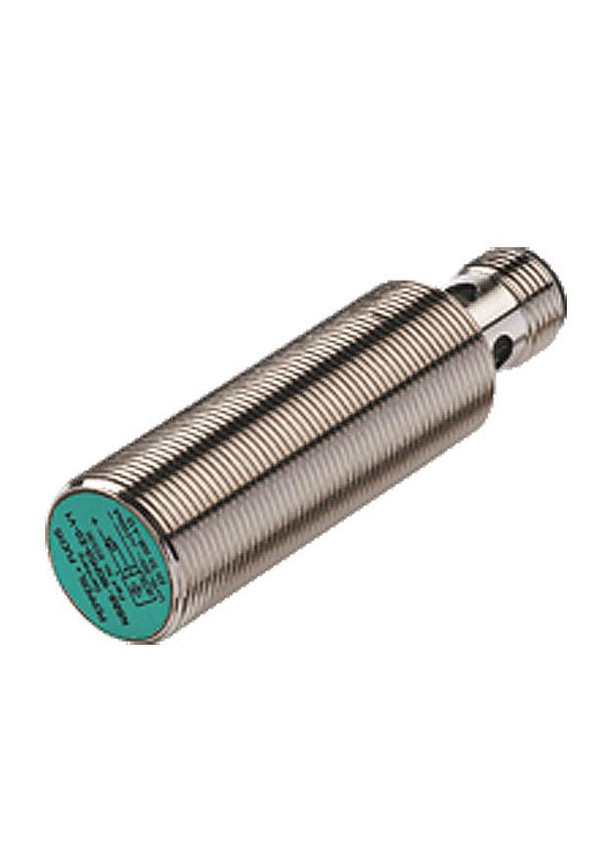

Product image is representative only, please verify specifications.
326161-0090
Alt: NBB8-18GM50-E0, (Was 086144)
$112.70
Inductive Proximity Sensor, Ø18mm, 3-Wire, 8mm Range, NPN NO, Cabled
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, 18mm Dia., 3-Wire, NPN, NO, Cabled
Ever wondered how to really pronounce "Pepperl+Fuchs"? Learn how here!
Specifications
Alternate Part Number
NBB8-18GM50-E0, (Was 086144)
Connection
w/Cable
Material
Nickel Plated Brass
Normally Open/Closed
Normally Open (NO)
NPN or PNP
NPN (Sink)
All - Specific Ratings
IP67
Series
NBB Series
Shielded/Unshielded
Shielded - Flush
Size
18mm
Type of Sensor
Inductive
All - Voltage
10-30VDC
Warranty
18 Months
Weight
0.5000
Features Include:
- Rated Operating Distance: 8 mm
- Installation: Flush
- Assured Operating Distance: 0 - 6.48 mm
- Switching Frequency: 0 - 500 Hz
- Operating Voltage: 10 - 30 V
- Operating Current: 0 - 200 mA
- Connection Type: Cable PVC , 2 m
- Short-Circuit Protection: Pulsing
- Switching State Indicator: LED, yellow
- Ambient Temperature: -25 - 70 °C (-13 - 158 °F)
- Sensing Face: PBT
