Pepperl+Fuchs
306534-0003

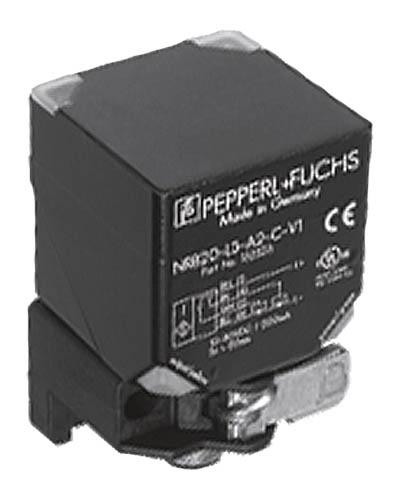

Inductive Sensor, Flush, 20mm Range, Cube Style, PNP, IO-Link, RF1, M12, Returns of This Item Must Be Approved by Manufacturer
$125.78
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!
306534-0001
Alt: NRB20-L3-E2-IO-C-V1
$138.86
Inductive Sensor, 20mm Range, Flush, Weld-Immune, Cube Style, PNP, RF1, IO-Link, M12
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Specifications
Alternate Part Number
NRB20-L3-E2-IO-C-V1
Connection
M12, Straight
Material
See Spec
Normally Open/Closed
Normally Open/Closed (NO/NC)
NPN or PNP
PNP (Source)
All - Specific Ratings
IP67
Series
NR Series
Shielded/Unshielded
Shielded - Flush
Size
20 mm
Type of Sensor
Inductive
All - Voltage
10-30VDC
Warranty
18 Months
Weight
1
Features Incllude:
- 20 mm flush
- Reduction factor = 1
- Magnetic field resistant
- Weld Immune
- IO-link interface for service and process data
- Switch point mode or window mode can be set
- Switching function, stability alarm and pulse extension can be set
- 4-way LED indicator
- Quick mounting bracket
- Switching function: Normally open/closed (NO/NC) programmable
- Output type: PNP
- Rated operating distance: 20 mm (factory setting)
- Operating voltage: 10 - 30 V DC
- Connection type: Connector plug M12 x 1 , 4-pin
- Housing material: GD-ZnAl4Cu1, coated mounting flange PA6-GF35
