$110.68
326161-0134
Alt: NBN12-18GM50-E0-V1, (Was 087778)
$110.68

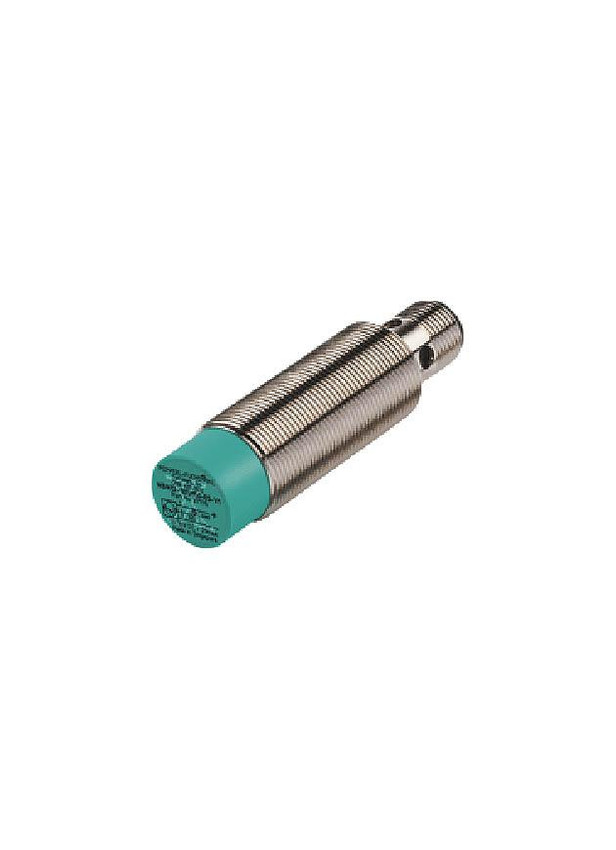

Inductive Proximity Sensor, Ø18mm, 3-Wire, 12mm Range, NPN NO, M12
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor,18mm Dia., 3-Wire, NPN, NO, M12
Ever wondered how to really pronounce "Pepperl+Fuchs"? Learn how here!
Features Include:
- Rated Operating Distance: 12 mm
- Installation: Non-Flush
- Assured Operating Distance: 0 - 9.72 mm
- Switching Frequency: 0 - 500 Hz
- Operating Voltage: 10 - 30 V
- Operating Current: 0 - 200 mA
- Connection Type: Connector M12 x 1, 4-pin
- Housing Diameter: 18 mm
- Short-Circuit Protection: Pulsing
- Switching State Indicator: Multihole-LED, yellow
- Ambient Temperature: -25 - 70 °C (-13 - 158 °F)
- Sensing Face: PBT
