$144.00
Available Now!
Available Now!
(1 in stock)
IR06.P06S-N46.PO1Z.7SL
Alt: 11148717
$144.00

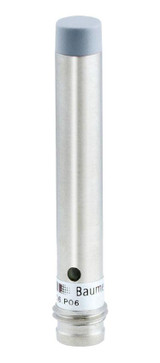

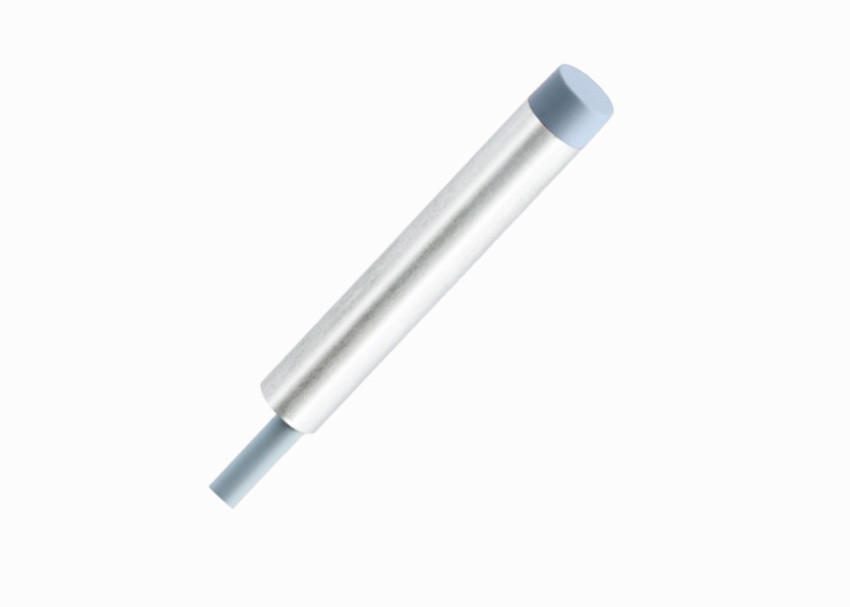

Inductive Proximity Switch, Miniature, Enhanced Distance (GammaProx), Non-Flush, 6-36VDC, 6mm Nominal Range Sn, PNP, NO, M8 Connector, 6.5 x 45mm, Cylindrical Smooth, Stainles Steel Housing, PBT Sensing Face, -25 to +75°C Operating Temperature, IP67
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Mounting type: Non-flush
- Special type: Enhanced distance (GammaProx)
- Nominal sensing distance Sn: 6 mm
- Switching frequency: 400 kHz
- Voltage supply range +Vs: 6 - 36 VDC
- Current consumption max. (no load): 12 mA
- Output current: < 200 mA
- Hysteresis: 3 - 20 % of Sr
- Output indicator: 3 port LED red
- Output current: < 100 mA
- Output circuit: PNP make function (NO)
- Material (sensing face): PBT
- Housing material: Stainless steel
- Dimension: 6.5 mm
- Housing length: 46 mm
- Connection types: Connector M8

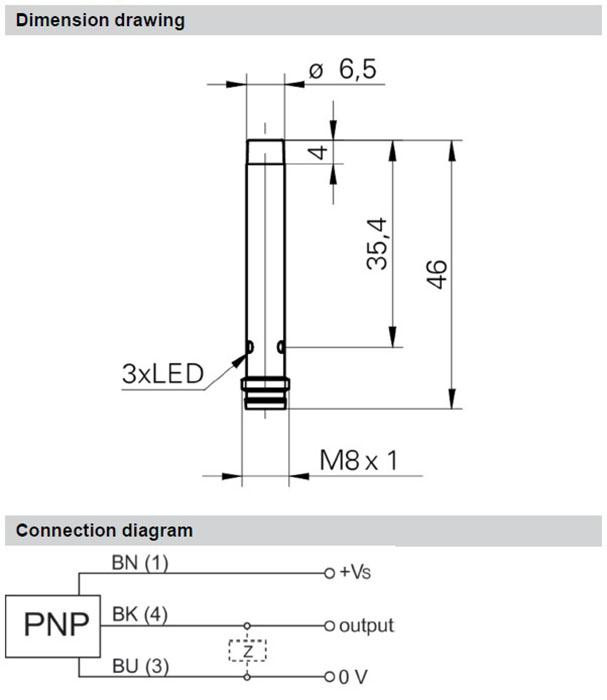

Technical Information:
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$144.00
Baumer
IR08.P06S-N46.PO1Z.7SL

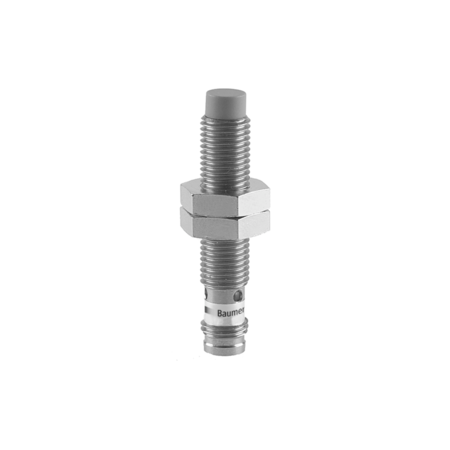

Inductive Proximity Sensor, Ø8x46mm, Non-Flush, 6-36VDC, 6mm Range, PNP NO, M8, IP67
$144.00
$144.00
$159.00
