IFFM 06N15A3/O1L

IFFM 06N15A3/O1L

Alt: 10146220

$199.00

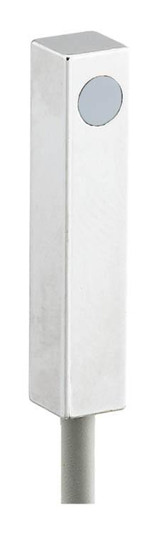

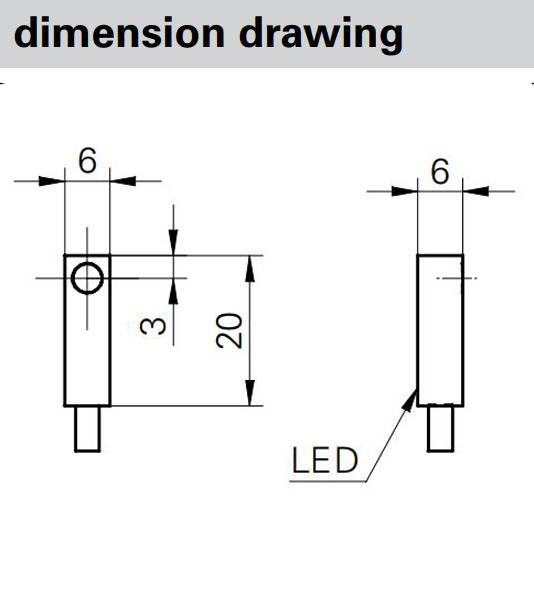

Inductive Proximity Sensor, Subminiature, Flush, 6-30VDC, 1mm Sensing Distance Sn, NPN, NO, 2m Cable, Brass Nickel Plated Housing, LCP Sensing Face, Rectangular 6 x 20mm, -25° to +75°C, IP67

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Inductive Proximity Switch, Flush, 1mm, LED Red

Features Include:

  • Mounting Type: Flush
  • Nominal Sensing Distance Sn: 1 mm
  • Voltage Supply Range: 10 - 30 VDC
  • Current Consumption Max. (no load): 12 mA
  • Output Current: < 100 mA
  • Hysteresis: 2 - 20 % of Sr
  • Switching Frequency: < 5 kHz
  • Output Circuit: NPN make function (NO)
  • Connection: Cable, 2 m
  • Operating Temperature: -25 - 75 °C
  • Protection Rating: IP 67
