Baumer
IFRM 08X9503/S35

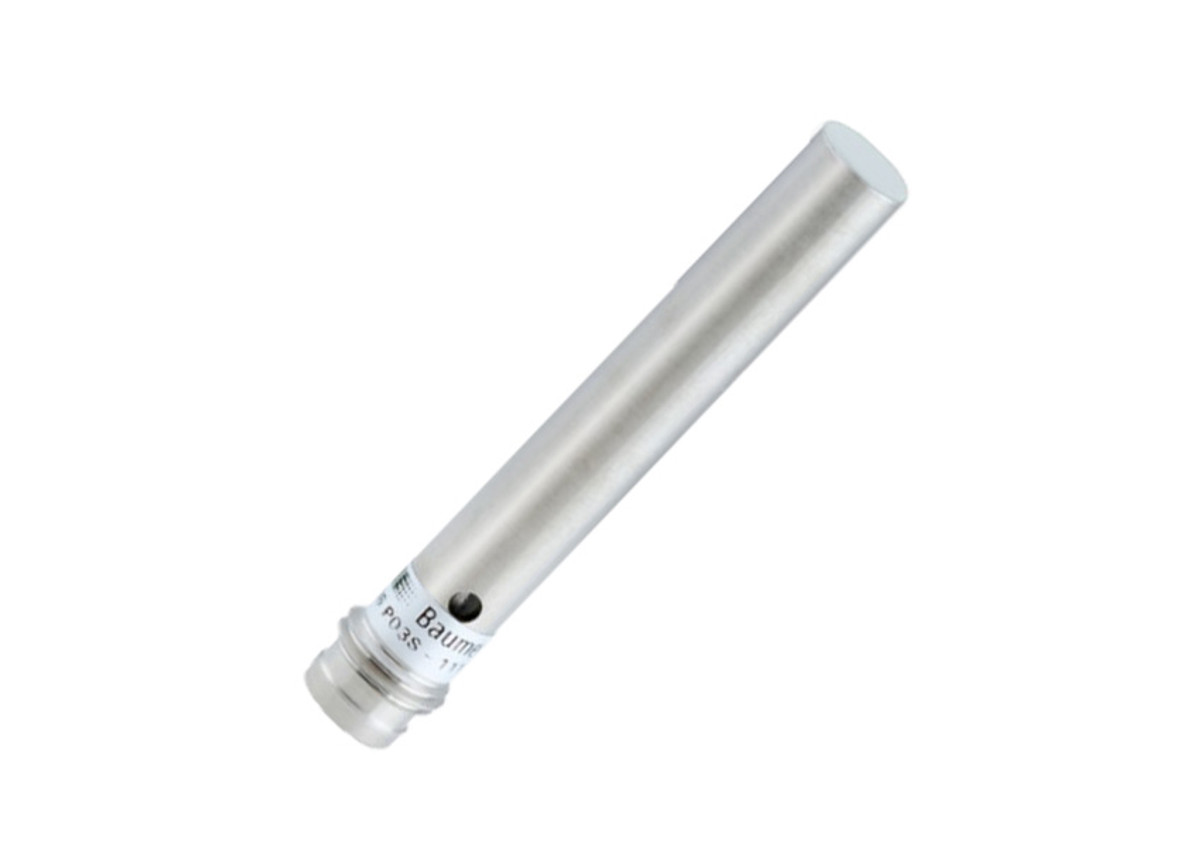

Inductive Proximity Sensor, Ø8x41mm, Flush, ATEX 1G, 5-30VDC, 1.5mm Range, NAMUR, M8 Connector, IP67
$129.32
Available Now!
Available Now!
(1 in stock)
IFRM 08X9501/S35
Alt: 10126466
$129.32
Inductive Proximity Sensor, Ø8x50mm, Flush, 5-30VDC, 1.5mm Range, NAMUR, M8 Connector, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø8x50mm, Flush, 5-30VDC, 1.5mm Range, NAMUR, M8 Connector, IP67
Specifications
Alternate Part Number
10126466
Connection
M8, Straight
Material
Stainless Steel
Normally Open/Closed
See Spec
NPN or PNP
See Spec or N/A
All - Specific Ratings
IP67
Series
IFRM Series
Shielded/Unshielded
Shielded - Flush
Size
8mm
Type of Sensor
Inductive
All - Voltage
DC
Quantity
1
Warranty
3 Years
Weight
.5
Features Include:
- Nominal Sensing Distance Sn: 1.5 mm
- Mounting Type: Flush
- Switching Frequency:< 5 kHz
- Normal Operating Voltage: 8.2 VDC
- Voltage Supply Range +Vs: 5 - 30 VDC
- Current Consumption undamped: > 4 mA
- Current Consumption damped: > 1 mA
- Output Indicator: LED red
- Current Consumption Max. (no load): 10 mA
- Output Circuit: NAMUR
- Housing Material: Stainless Steel
