IFRM 08P17T4
Alt: 10159049
$399.00

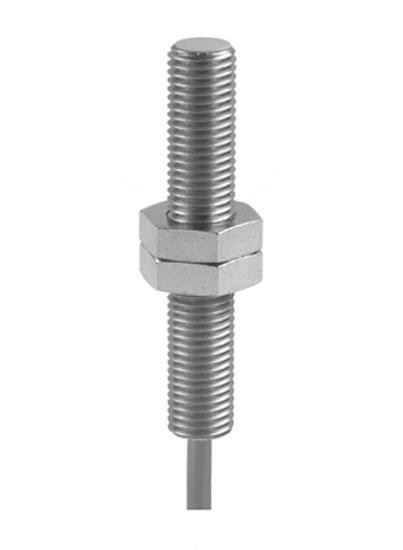

Inductive Proximity Sensor, Ø8x50mm FL, Hi Temp, 2-30VDC, 2mm Range, PNP NO, 1m FEP Cable, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø8x50mm FL, Hi Temp. 12-30VDC, 2mm Range, PNP NO, 1m FEP Cable, IP67
Features Include:
- Special Type: High Temperature
- Nominal Sensing Distance Sn: 2 mm
- Mounting Type: Flush
- Hysteresis: 3 - 20% of Sr
- Output Indicator: LED red
- Switching Frequency:< 5 kHz
- Voltage Supply Range +Vs:10 - 30 VDC
- Current Consumption Max. (no load): 12 mA
- Voltage Drop: < 3 VDC
- Output Current: < 200 mA
- Housing Material: Stainless Steel
Temperature Drift:
- ± 10 % (-25 - +75°C)
- - 10% / +15% (-25 - +100°C)
