Available Now! IFRD 08P17A1/S35L
Available Now! (3 in stock)

IFRD 08P17A1/S35L

Alt: 10149559

$279.00

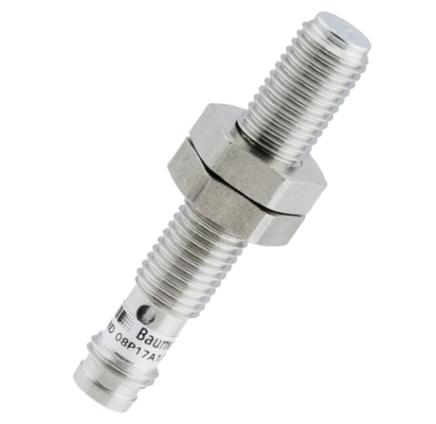

Inductive Proximity Sensor, Ø8x46mm, Quasi-Flush, 10-30VDC, 2mm Range, PNP NO, M8 Connector, IP67

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Inductive Proximity Sensor, Ø8x46mm, Quasi-Flush, 10-30VDC, 2mm Range, PNP NO, M8 Connector, IP67

Features Include:

  • Special Type:  Full Metal Housing (DuroProx)
  • Nominal Sensing Distance Sn: 2 mm
  • Mounting Type: Quasi-Flush
  • Hysteresis: 2 - 20% of Sr
  • Output Indicator: 3 port LED red
  • Switching Frequency:< 150 kHz
  • Voltage Supply Range +Vs:10 - 30 VDC
  • Current Consumption Max. (no load): 20 mA
  • Voltage Drop: < 2 VDC
  • Output Current: < 200 mA
  • Material (sensing face): Stainless Steel 1.4404 (V4A)
  • Housing Material: Stainless Steel 1.4404 (V4A)
