Baumer
IFRM 12N1707
Inductive Proximity Sensor, Ø12x40mm, Flush, 12-30VDC, 4mm Range, NPN NO, 1m FEP Cable, IP67
$342.51
**Tariff Update: Currently in 'Wait and See' Mode Instead of 'Panic and Overcharge' Mode!** Read the latest!
Available Now!
Available Now!
(1 in stock)

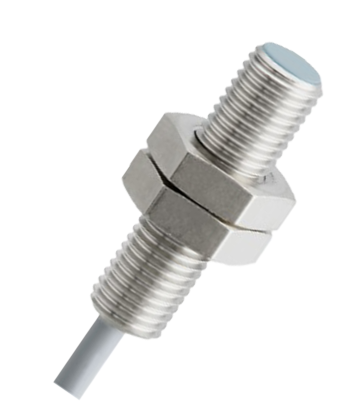

IFRM 08P1707
Alt: 10218950
$370.47
Inductive Proximity Sensor, Ø8x30mm FL, Hi Temp, 2-30VDC, 2mm Range, PNP NO, 1m FEP Cable, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø8x30mm FL, Hi Temp. 12-30VDC, 2mm Range, PNP NO, 1m FEP Cable, IP67
Specifications
Alternate Part Number
10218950
Connection
w/Cable
Material
Stainless Steel
Normally Open/Closed
Normally Open (NO)
NPN or PNP
PNP (Source)
All - Specific Ratings
IP67
Series
IFRM Series
Size
30mm
Type of Sensor
Inductive
All - Voltage
DC
Quantity
1
Warranty
3 Years
Weight
.5
Features Include:
- Special Type: High Temperature
- Nominal Sensing Distance Sn: 2 mm
- Mounting Type: Flush
- Hysteresis: 3 - 20% of Sr
- Switching Frequency:< 5 kHz
- Voltage Supply Range +Vs:10 - 30 VDC
- Current Consumption Max. (no load): 12 mA
- Voltage Drop: < 2 VDC
- Output Current: < 100 mA
- Housing Material: Stainless Steel
Temperature Drift:
- ± 10 % (-25 - +75°C)
- - 10% / +15% (-25 - +100°C)
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
IFRM 06X9503
Inductive Proximity Sensor, Ø6.5x25mm, Flush, ATEX 1G, 5-30VDC, 1.5mm Range, NAMUR, 2m Cable, IP67
$127.57
Baumer
IFRM 08P17T4
Inductive Proximity Sensor, Ø8x50mm FL, Hi Temp, 2-30VDC, 2mm Range, PNP NO, 1m FEP Cable, IP67
$370.47
Baumer
IFRM 06P1707
Inductive Proximity Sensor, Ø6.5x30mm FL, Hi Temp, 0-30VDC, 2mm Range, PNP NO, 1m FEP Cable, IP67
$370.47
Baumer

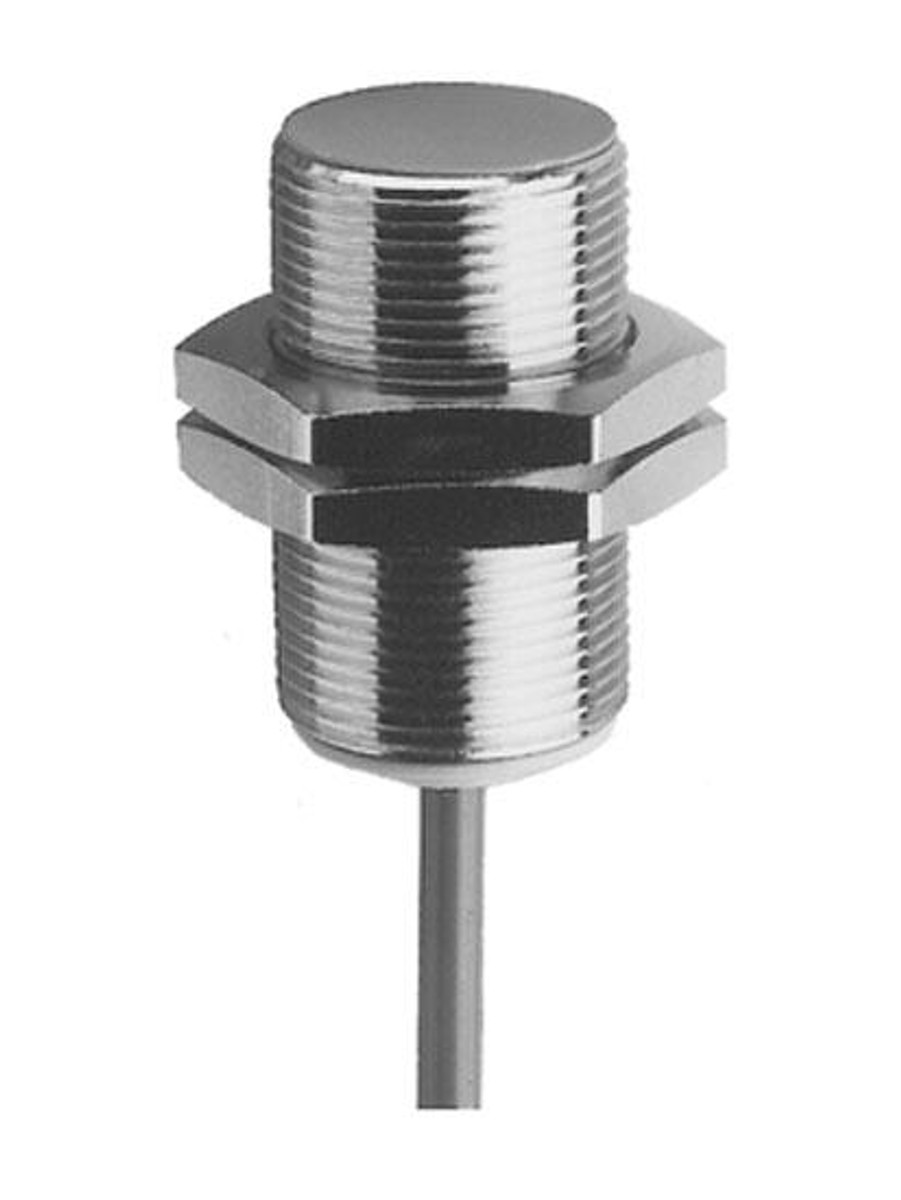

IFRM 18X9503
