Baumer
IFRM 06X9503/P

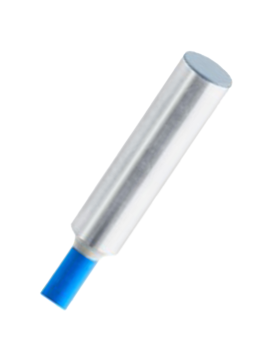

Inductive Proximity Sensor, Ø6.5x25mm, Flush, ATEX 1G, 5-30VDC, 1.5mm Range, NAMUR, 2m PUR Cable, IP67
$127.57
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!
IFRM 06X9503
Alt: 10234869
$127.57
Inductive Proximity Sensor, Ø6.5x25mm, Flush, ATEX 1G, 5-30VDC, 1.5mm Range, NAMUR, 2m Cable, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø6.5x25mm FL, ATEX 1G 5-30VDC, 1.5mm Range, NAMUR, 2m Cable, IP67
Specifications
Alternate Part Number
10234869
Connection
w/Cable
Material
Nickel Plated Brass
Normally Open/Closed
See Spec
NPN or PNP
See Spec or N/A
All - Specific Ratings
IP67
Series
IFRM Series
Size
6mm
Type of Sensor
Inductive
All - Voltage
DC
Warranty
3 Years
Weight
.5
Features Include:
- Nominal Sensing Distance Sn: 1.5 mm
- Mounting Type: Flush
- Normal Operating Voltage: 8.2 VDC
- Output Indicator: LED red
- Switching Frequency:< 5 kHz
- Voltage Supply Range +Vs: 5 - 30 VDC
- Current Consumption undamped: > 4 mA
- Current Consumption damped: < 1 mA
- Current Consumption Max. (no load): 10 mA
- Output Circuit: NAMUR
- Housing Material: Nickel Plated Brass
