IFRM 05P37A1/PL

IFRM 05P37A1/PL

Alt: 11082475

$164.00

Inductive Proximity Sensor, Ø5x25mm, Flush, 10-30VDC, 1.6mm Range, PNP NC, 2m Cable, IP67

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

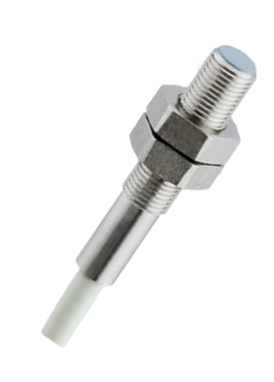

Inductive Proximity Sensor, Ø5x25mm, Flush, 10-30VDC, 1.6mm Range, PNP NC, 2m Cable, IP67

Features Include:

  • Nominal Sensing Distance Sn: 1.6 mm
  • Mounting Type: Flush
  • Hysteresis: 3 - 20% of Sr
  • Output Indicator: LED red
  • Switching Frequency:< 3 kHz
  • Voltage Supply Range +Vs:10 - 30 VDC
  • Current Consumption Max. (no load): 12 mA
  • Voltage Drop: < 2 VDC
  • Output Current: < 100 mA
  • Material (sensing face): LCP
  • Housing Material: Stainless Steel
