IFRM 04N37A1/S35L
Alt: 11082455
$136.31

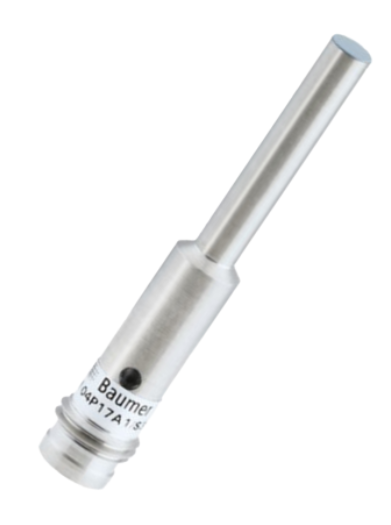

Inductive Proximity Sensor, Ø4x45mm, Flush, 10-30VDC, 1.6mm Range, NPN NC, M8 Connector, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø4x45mm, Flush, 10-30VDC, 1.6mm Range, NPN NC, M8 Connector, IP67
Specifications
Alternate Part Number
11082455
Connection
M8, Straight
Material
Stainless Steel
Normally Open/Closed
Normally Closed (NC)
NPN or PNP
NPN (Sink)
All - Specific Ratings
IP67
Series
IFRM Series
Shielded/Unshielded
Shielded - Flush
Type of Sensor
Inductive
All - Voltage
10-30VDC
Warranty
3 Years
Weight
.5
Features Include:
- Nominal Sensing Distance Sn: 1.6 mm
- Mounting Type: Flush
- Hysteresis: 2 - 20% of Sr
- Output Indicator: 3 port LED red
- Switching Frequency: < 3 kHz
- Voltage Supply Range +Vs: 10 - 30 VDC
- Current Consumption Max. (no load): 12 mA
- Voltage Drop: < 2 VDC
- Output Current: < 100 mA
- Material (sensing face): LCP
- Housing Material: Stainless Steel
