Baumer
IFRM 04P35A3/L
Inductive Proximity Sensor, Ø4x20mm, Flush, 10-30VDC, 1mm Range, PNP NC, 2m Cable, IP67
$169.00
IFRM 04P35A3/S05L
Alt: 10144449
$154.00

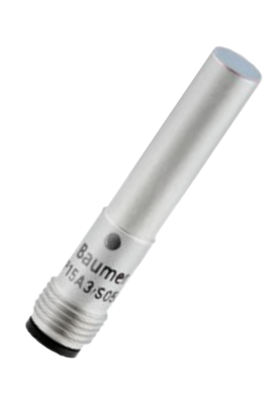

Inductive Proximity Sensor, Ø4x24mm, Flush, 10-30VDC, 1mm Range, PNP NC, M5 Connector, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø4x24mm, Flush, 10-30VDC, 1mm Range, PNP NC, M5 Connector, IP67
Features Include:
- Nominal Sensing Distance Sn: 1 mm
- Mounting Type: Flush
- Hysteresis: 2 - 20% of Sr
- Output Indicator: 2 port LED red
- Switching Frequency:< 5 kHz
- Voltage Supply Range +Vs: 10 - 30 VDC
- Current Consumption Max. (no load): 12 mA
- Voltage Drop: < 2 VDC
- Output Current: < 100 mA
- Material (sensing face): LCP
- Housing Material: Stainless Steel
Need More Information?
