IFRM 04P35A5/Q
Alt: 10144457
$209.00
Inductive Proximity Sensor, Ø4x15mm, Flush, 10-30VDC, 1mm Range, PNP NC, 0.5m Wires, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

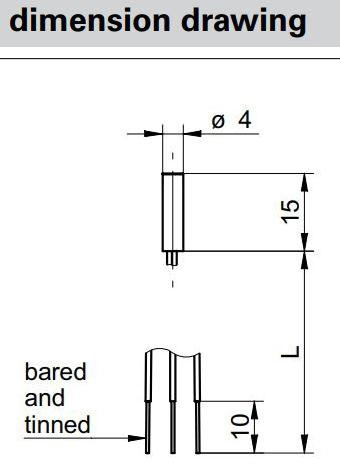

Inductive Proximity Sensor, Ø4x15mm, Flush 10-30VDC, 1mm Range, PNP NC, 0.5m Wires, IP67
Features Include:
- Nominal Sensing Distance Sn: 1 mm
- Mounting Type: Flush
- Hysteresis: 2 - 20% of Sr
- Output Indicator: LED red
- Switching Frequency:< 5 kHz
- Voltage Supply Range +Vs: 10 - 30 VDC
- Current Consumption Max. (no load): 12 mA
- Voltage Drop: < 2 VDC
- Output Current: < 100 mA
- Material (sensing face): LCP
- Housing Material: Stainless Steel
Need More Information?
