Baumer
IFRM 05P35A5/Q
Inductive Proximity Sensor, Ø5x15mm, Flush, 10-30VDC, 1mm Range, PNP NC, 0.5m Wires, IP67
$209.00
IFRM 03N3503/Q
Alt: 10138312
$234.00
Inductive Proximity Sensor, Ø3x16mm, Flush, 10-30VDC, 0.8mm Range, NPN NC, 0.5m Wires, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

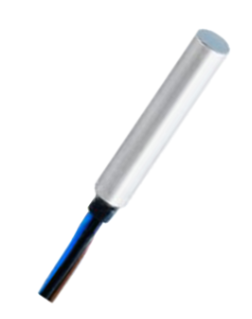

Inductive Proximity Sensor, Ø3x16mm, Flush, 10-30VDC, 0.8mm Range, NPN NC, 0.5m Wires, IP67
Features Include:
- Nominal Sensing Distance Sn: 0.8 mm
- Mounting Type: Flush
- Hysteresis: 2 - 20% of Sr
- Switching Frequency: < 3 kHz
- Voltage Supply Range +Vs: 10 - 30 VDC
- Current Consumption Max. (no load): 12 mA
- Voltage Drop: < 2 VDC
- Output Current: < 100 mA
- Material (sensing face): POM
- Housing Material: Stainless Steel
Need More Information?
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
IFRM 05P15A5/Q
Inductive Proximity Sensor, Ø5x15mm, Flush, 10-30VDC, 1mm Range, PNP NO, 0.5m Wires, IP67
$209.00
Baumer
IFRM 05N35A5/Q
Inductive Proximity Sensor, Ø5x15mm, Flush, 10-30VDC, 1mm Range, NPN NC, 0.5m Wires, IP67
$209.00
Baumer
IFRM 04N15A5/Q
Inductive Proximity Sensor, Ø4x15mm, Flush, 10-30VDC, 1mm Range, NPN NO, 0.5m Wires, IP67
$209.00
Baumer
IFRM 05N15A5/Q
Inductive Proximity Sensor, Ø5x15mm, Flush, 10-30VDC, 1mm Range, NPN NO, 0.5m Wires, IP67
$209.00
Baumer
IFRM 03N1503/Q
Inductive Proximity Sensor, Ø3x16mm, Flush, 10-30VDC, 0.8mm Range, NPN NO, 0.5m Wires, IP67
$234.00
Baumer
IFRM 04P15A5/Q
Inductive Proximity Sensor, Subminiature, Flush, 6-30VDC, 1mm Nominal Sensing Distance Sn, PNP NO, 0.5m Wires Connection, Stainless Steel Housing, LCP Sensing Face, 4 x 15mm Cylindrical Smooth Shape, -25 to +75°C Operating Temperature, IP67
$209.00
Baumer
IFRM 03P3503/Q
Inductive Proximity Sensor, Ø3x16mm, Flush, 10-30VDC, 0.8mm Range, PNP NC, 0.5m Wires, IP67
$234.00
Baumer
IFRM 04N35A5/Q
Inductive Proximity Sensor, Ø4x15mm, Flush, 10-30VDC, 1mm Range, NPN NC, 0.5m Wires, IP67
$209.00
