Baumer
IFRM 03N1505/CS35L

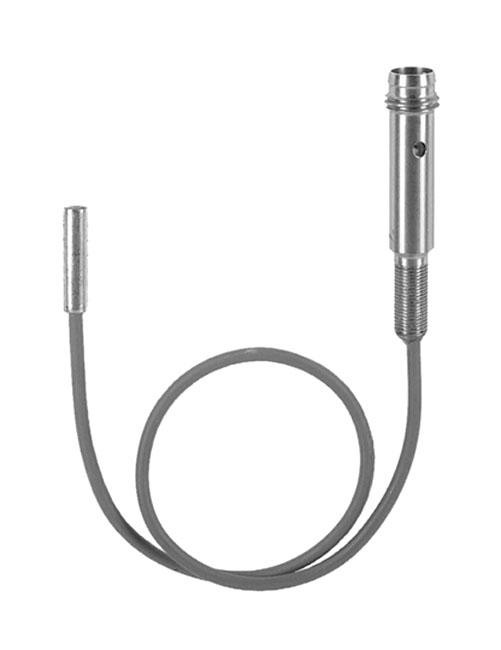

Inductive Proximity Sensor, Ø3x12mm, Flush, 10-30VDC, 0.8mm Range, NPN NO, M8 Connector, IP67
$339.00
IFRM 03N3505/CS35L
Alt: 10142166
$379.00
Inductive Proximity Sensor, Ø3x12mm, Flush, 10-30VDC, 0.8mm Range, NPN NC, M8 Connector, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø3x12mm, Flush, 10-30VDC, 0.8mm Range, NPN NC, M8 Connector, IP67
Features Include:
- Nominal Sensing Distance Sn: 0.8 mm
- Mounting Type: Flush
- Hysteresis: 2 - 20% of Sr
- Output Indicator: 3 port LED red
- Switching Frequency: < 3 kHz
- Voltage Supply Range +Vs: 10 - 30 VDC
- Current Consumption Max. (no load): 12 mA
- Voltage Drop: < 2 VDC
- Output Current: < 100 mA
- Material (sensing face):POM
- Housing Material: Stainless Steel
Need More Information?
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
IFRM 03P1505/CS35L
Inductive Proximity Sensor, Ø3x12mm, Flush, 10-30VDC, 0.8mm Range, PNP NO, M8 Connector, IP67
$339.00
Baumer
IFRM 03P3505/CS35L
Inductive Proximity Sensor, Ø3x12mm, Flush, 10-30VDC, 0.8mm Range, PNP NC, M8 Connector, IP67
$379.00
Baumer
IFRM 12N1707
Inductive Proximity Sensor, Ø12x40mm, Flush, 12-30VDC, 4mm Range, NPN NO, 1m FEP Cable, IP67
$349.00
Baumer
IFRM 06X9503
Inductive Proximity Sensor, Ø6.5x25mm, Flush, ATEX 1G, 5-30VDC, 1.5mm Range, NAMUR, 2m Cable, IP67
$139.00
Baumer
IFRM 08P1707
Inductive Proximity Sensor, Ø8x30mm FL, Hi Temp, 2-30VDC, 2mm Range, PNP NO, 1m FEP Cable, IP67
$399.00
Baumer
IFRM 08P17T4
Inductive Proximity Sensor, Ø8x50mm FL, Hi Temp, 2-30VDC, 2mm Range, PNP NO, 1m FEP Cable, IP67
$399.00
Baumer
IFRM 08N1707
Inductive Proximity Sensor, Ø8x30mm, Flush, HiTemp10-30VDC, 2mm Range, NPN NO, 1m FEP Cable, IP67
$379.00
Baumer
IFRM 06P1707
Inductive Proximity Sensor, Ø6.5x30mm FL, Hi Temp, 0-30VDC, 2mm Range, PNP NO, 1m FEP Cable, IP67
$379.00
