Baumer
IGYX 30P17B3/L

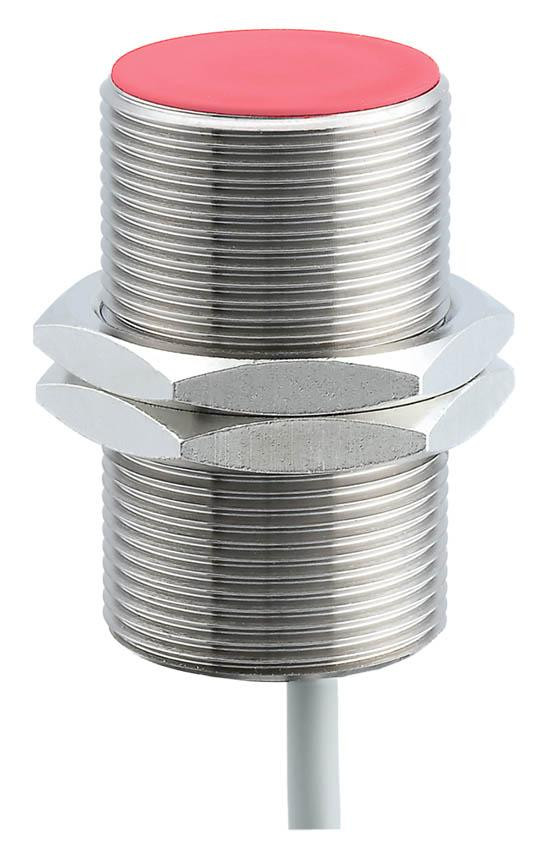

Inductive Proximity Sensor, Ø30x50mm, Flush, 10-30VDC, 15mm Range, PNP NO, 2m Cable, IP67
$66.00
IGYX 30P17B3/S14L
Alt: 11080998
$61.00
Inductive Proximity Sensor, Ø30x60mm, Flush, 10-30VDC, 15mm Range, PNP NO, M12 Connector, IP67, Generally Available to Ship in 3 to 5 Days
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.
Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.
Specifications
Alternate Part Number
11080998
Connection
M12, Straight
Material
Nickel Plated Brass
Normally Open/Closed
Normally Open (NO)
NPN or PNP
PNP (Source)
All - Specific Ratings
IP67
Series
IGYX Series
Shielded/Unshielded
Shielded - Flush
Size
30mm
Type of Sensor
Inductive
All - Voltage
10-30VDC
Warranty
3 Years
Weight
0.5000
Features Include:
- Mounting type: Flush
- Nominal sensing distance Sn: 15 mm
- Assured sensing distance Sa: 12 mm
- Hysteresis: 3 - 20 % of Sr
- Output indicator: 3 port LED red
- Switching frequency: 400 kHz
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load): 15 mA
- Output circuit: PNP make function (NO)
- Voltage drop Vd: < 2.5 VDC
- Output current: < 200 mA
- Type: Cylindrical threaded
- Material (sensing face): PBT, red
- Housing material: Brass nickel plated
- Dimension: 30 mm
- Housing length: 60 mm
- Connection types: Connector M12
