Baumer
IFRM 18P17A4/L
Inductive Proximity Sensor, Ø18x65mm, Quasi-Flush, 10-30VDC, 8mm Range, PNP NO, 2m Cable, IP67
$109.00

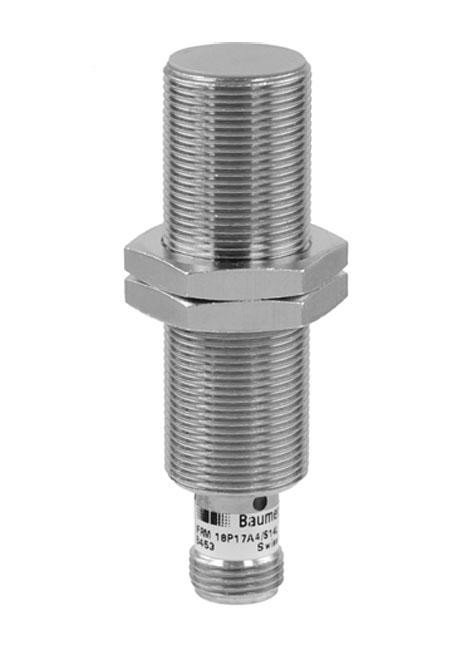

IFRM 18P17A4/S14L
Alt: 11111677
$94.00
Inductive Proximity Sensor, Ø18x75mm, Quasi-Flush, 10-30VDC, 8mm Range, PNP NO, M12 Connector, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø18x75mm, Quasi-Flush, 10-30VDC, 8mm Range, PNP NO, M12 Connector, IP67
Features Include:
- Nominal Sensing Distance Sn: 8 mm
- Mounting Type: Quasi-Flush
- Hysteresis: 3 - 20% of Sr
- Output Indicator: 3 port LED red
- Switching Frequency:< 500 kHz
- Voltage Supply Range +Vs:10 - 30 VDC
- Current Consumption Max. (no load): 10 mA
- Voltage Drop: < 2 VDC
- Output Current: < 200 mA
- Material (sensing face): PBT
- Housing Material: Nickel Plated Brass
Need More Information?
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
IFRM 12N1701/S14L
Inductive Proximity Sensor, Ø12x50mm, Flush, 10-30VDC, 4mm Range, NPN NO, M12 Connector, IP67, Generally Available to Ship in 3 to 5 Days
$99.00
Baumer
IFRM 18N17A5/S14L
Inductive Proximity Sensor, Ø18x45mm, Quasi-Flush, 10-30VDC, 8mm Range, NPN NO, M12 Connector, IP67
$94.00
Baumer
IFRM 18N17A3/S14L
Inductive Proximity Sensor, Ø18x60mm, Quasi-Flush, 10-30VDC, 8mm Range, NPN NO, M12 Connector, IP67
$94.00
Baumer
IFRM 12P1703/S14L
Inductive Proximity Sensor, Ø12x40.4mm, Flush, 10-30VDC, 4mm Range, PNP NO, M12 Connector, IP67
$99.00
Baumer
IFRM 18N17A4/S14L
Inductive Proximity Sensor, Ø18x75mm, Quasi-Flush, 10-30VDC, 8mm Range, NPN NO, M12 Connector, IP67
$94.00
Baumer
IFRM 18N37A3/S14L
Inductive Proximity Sensor, Ø18x60mm, Quasi-Flush, 10-30VDC, 8mm Range, NPN NC, M12 Connector, IP67
$94.00
Baumer
IFRM 18P17A5/S14L
Inductive Proximity Sensor, Ø18x45mm, Quasi-Flush, 10-30VDC, 8mm Range, PNP NO, M12 Connector, IP67
$94.00
Baumer
IFRM 12P3701/S14L
Inductive Proximity Sensor, Ø12x50mm, Flush, 10-30VDC, 4mm Range, PNP NC, M12 Connector, IP67
$99.00
