Baumer
IFRM 18P37A4/S14L

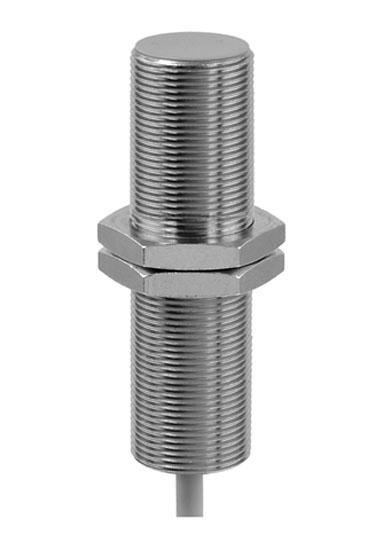

Inductive Proximity Sensor, Ø18x75mm, Quasi-Flush, 10-30VDC, 8mm Range, PNP NC, M12 Connector, IP67
$94.00
IFRM 18P37A4/L
Alt: 11111679
$109.00
Inductive Proximity Sensor, Ø18x65mm, Quasi-Flush, 10-30VDC, 8mm Range, PNP NC, 2m Cable, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø18x65mm, Quasi-Flush, 10-30VDC, 8mm Range, PNP NC, 2m Cable, IP67
Features Include:
- Nominal Sensing Distance Sn: 8 mm
- Mounting Type: Quasi-Flush
- Hysteresis: 3 - 20% of Sr
- Output Indicator: LED red
- Switching Frequency:< 500 kHz
- Voltage Supply Range +Vs:10 - 30 VDC
- Current Consumption Max. (no load): 10 mA
- Voltage Drop: < 2 VDC
- Output Current: < 200 mA
- Material (sensing face): PBT
- Housing Material: Nickel Plated Brass
