Baumer
IFRM 18P17A4/S14L
Inductive Proximity Sensor, Ø18x75mm, Quasi-Flush, 10-30VDC, 8mm Range, PNP NO, M12 Connector, IP67
$90.87
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!
IFRM 18P17A4/L
Alt: 11111676
$108.35
Inductive Proximity Sensor, Ø18x65mm, Quasi-Flush, 10-30VDC, 8mm Range, PNP NO, 2m Cable, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

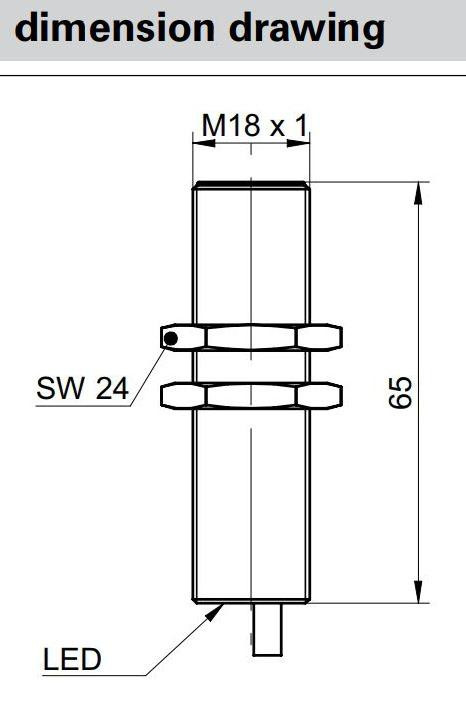

Inductive Proximity Sensor, Ø18x65mm, Quasi-Flush, 10-30VDC, 8mm Range, PNP NO, 2m Cable, IP67
Specifications
Alternate Part Number
11111676
Connection
w/Cable
Material
Nickel Plated Brass
Normally Open/Closed
Normally Open (NO)
NPN or PNP
PNP (Source)
All - Specific Ratings
IP67
Series
IFRM Series
Size
8mm
Type of Sensor
Inductive
All - Voltage
10-30VDC
Warranty
3 Years
Weight
.5
Features Include:
- Nominal Sensing Distance Sn: 8 mm
- Mounting Type: Quasi-Flush
- Hysteresis: 3 - 20% of Sr
- Output Indicator: LED red
- Switching Frequency:< 500 kHz
- Voltage Supply Range +Vs:10 - 30 VDC
- Current Consumption Max. (no load): 10 mA
- Voltage Drop: < 2 VDC
- Output Current: < 200 mA
- Material (sensing face): PBT
- Housing Material: Nickel Plated Brass
