Baumer
IFRM 18P37M1/PL
Inductive Proximity Sensor, Ø18x50mm, Flush, OD, 12-30VDC, 10mm Range, PNP NC, 2m PUR Cable, IP67
$159.00
IFRM 18P37M1/S14L
Alt: 11013674
$144.00

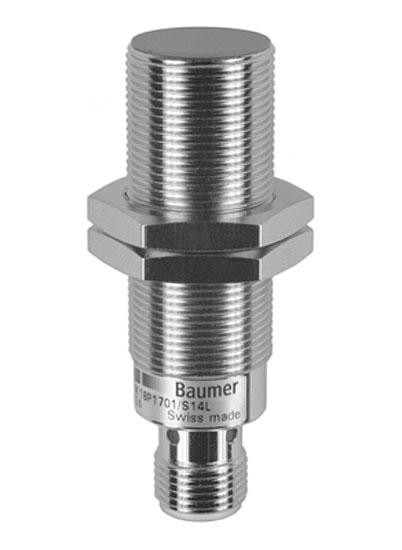

Inductive Proximity Sensor, Ø18x60mm, Flush, OD, 12-30VDC, 10mm Range, PNP NC, M12 Connector, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, √ò18x60mm, Flush, OD, 12-30VDC, 10mm Range, PNP NC, M12 Connector, IP67
Features Include:
- Nominal Sensing Distance Sn: 5 mm
- Mounting Type: Flush
- Hysteresis: 2 - 15% of Sr
- Switching Frequency: < 1 kHz
- Normal Operating Voltage: 8.2 VDC
- Voltage Supply Range +Vs: 5 - 30 VDC
- Current Consumption Undamped: > 4 mA
- Current Consumption Damped: < 1 mA
- Current Consumption Max. (no load): 10 mA
- Output Circuit: NAMUR
- Housing Material: Nickel Plated Brass
- Connection: Cable, 2m
