Baumer
IFRM 18N17M1/PL
Inductive Proximity Sensor, Ø18x50mm, Flush, OD, 12-30VDC, 10mm Range, NPN NO, 2m PUR Cable, IP67
$159.00
IFRM 18N17M1/S14L
Alt: 11013675
$144.00

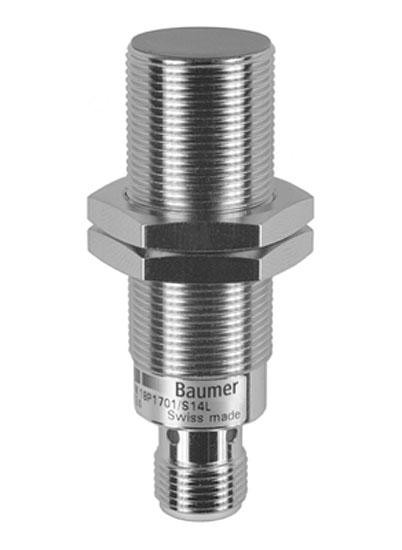

Inductive Proximity Sensor, Ø18x60mm, Flush, 12-30VDC, 10mm Range, NPN NO, M12 Connector, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø18x60mm, Flush, 12-30VDC, 10mm Range, NPN NO, M12 Connector, IP67
Features Include:
- Special Type: Outdoor Design
- Nominal Sensing Distance Sn: 10 mm
- Mounting Type: Flush
- Hysteresis: 2 - 15% of Sr
- Output Indicator: LED red
- Switching Frequency:< 400 kHz
- Voltage Supply Range +Vs:12 - 30 VDC
- Current Consumption Max. (no load): 24 mA
- Voltage Drop: < 2 VDC
- Output Current: < 200 mA
- Material (sensing face): PBT
- Housing Material: Nickel Plated Brass
