Baumer
IFRM 18N37M1/S14L

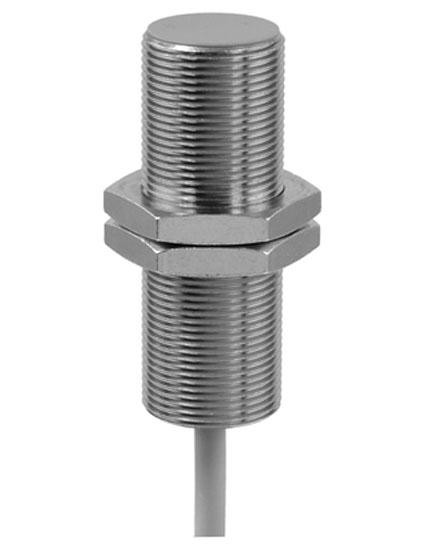

Inductive Proximity Sensor, Ø18x60mm, Flush, OD, 12-30VDC, 10mm Range, NPN NC, M12 Connector, IP67
$141.55
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!
IFRM 18N37M1/PL
Alt: 11013680
$157.28

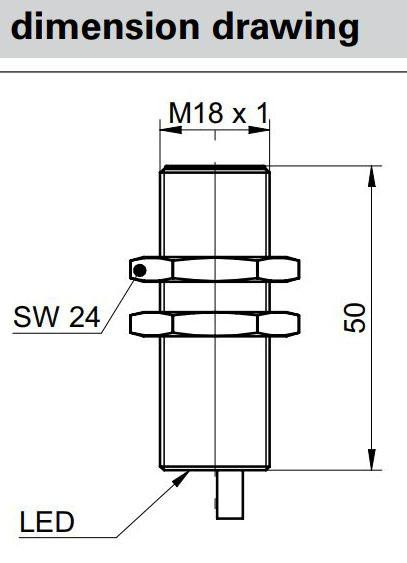

Inductive Proximity Sensor, Ø18x50mm, Flush, OD, 12-30VDC, 10mm Range, NPN NC, 2m PUR Cable, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø18x50mm, Flush, OD, 12-30VDC, 10mm Range, NPN NC, 2m PUR Cable, IP67
Specifications
Alternate Part Number
11013680
Connection
w/Cable
Material
Nickel Plated Brass
Normally Open/Closed
Normally Closed (NC)
NPN or PNP
NPN (Sink)
All - Specific Ratings
IP67
Series
IFRM Series
Shielded/Unshielded
Shielded - Flush
Size
18mm
Type of Sensor
Inductive
All - Voltage
DC
Warranty
3 Years
Weight
.5
Features Include:
- Nominal Sensing Distance Sn: 10 mm
- Mounting Type: Flush
- Hysteresis: 2 - 15% of Sr
- Output Indicator: LED red
- Switching Frequency:< 400 kHz
- Voltage Supply Range +Vs:10 - 30 VDC
- Current Consumption Max. (no load): 24 mA
- Voltage Drop: < 2 VDC
- Output Current: < 200 mA
- Material (sensing face): PBT
- Housing Material: Nickel Plated Brass
