IFRM 18P17A5/S14L
Alt: 11078673
$94.00

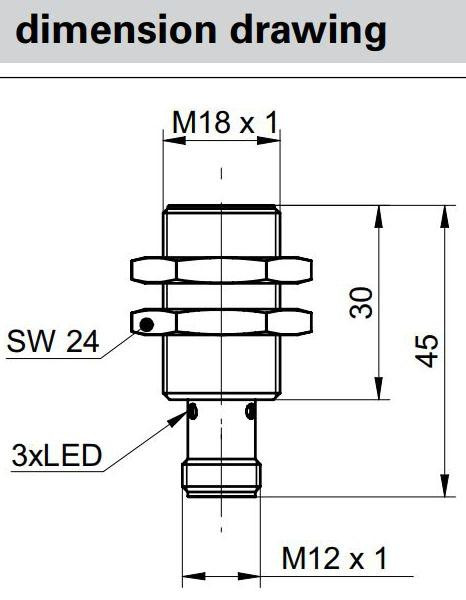

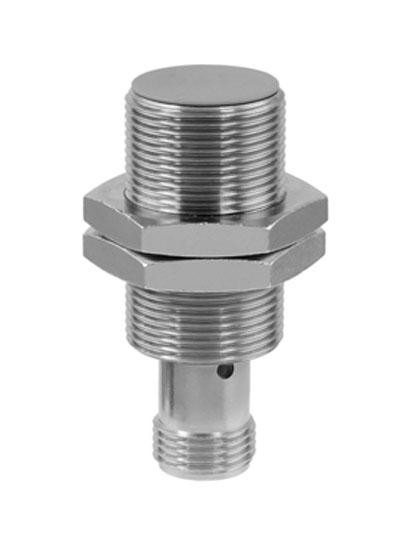

Inductive Proximity Sensor, Ø18x45mm, Quasi-Flush, 10-30VDC, 8mm Range, PNP NO, M12 Connector, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Configure Your Optimal Enclosure Solution
Choose the right enclosure with expert recommendations on compatible accessories like subpanels, fans, filters, heaters, thermostats, air conditioning units, and heat exchangers.
Description
Inductive Proximity Sensor, Ø18x45mm, Quasi-Flush, 10-30VDC, 8mm Range, PNP NO, M12 Connector, IP67
Specifications
Alternate Part Number
11078673
Connection
Quick Disconnect
Material
Nickel Plated Brass
Normally Open/Closed
Normally Open (NO)
NPN or PNP
PNP (Source)
All - Specific Ratings
IP67
Series
IFRM Series
Size
8mm
Type of Sensor
Inductive
All - Voltage
10-30VDC
Warranty
3 Years
Weight
0.5000
Features Include:
- Nominal Sensing Distance Sn: 8 mm
- Mounting Type: Quasi-Flush
- Hysteresis: 3 - 20% of Sr
- Output Indicator: LED red
- Switching Frequency:< 500 kHz
- Voltage Supply Range +Vs:10 - 30 VDC
- Current Consumption Max. (no load): 10 mA
- Voltage Drop: < 2 VDC
- Output Current: < 200 mA
- Material (sensing face): PBT
- Housing Material: Nickel Plated Brass
