IFRM 18N17A5/L
Baumer

IFRM 18N17A5/L

Alt: 11078679, *Includes Tariff

$114.85

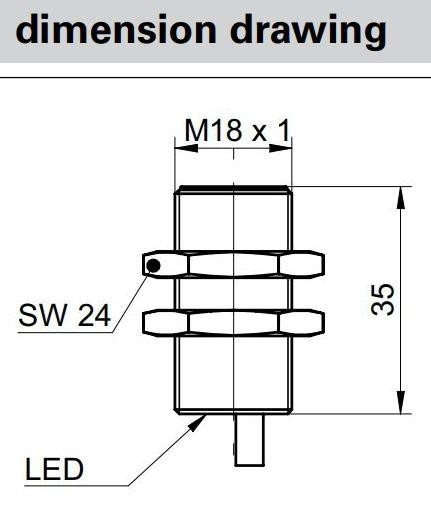

Inductive Proximity Sensor, Ø18x35mm, Quasi-Flush, 10-30VDC, 8mm Range, NPN NO, 2m Cable, IP67, Effective April 14th, 2025: This Item Includes a 6% Tariff That The Manufacturer Has Added

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Inductive Proximity Sensor, Ø18x35mm, Quasi-Flush, 10-30VDC, 8mm Range, NPN NO, 2m Cable, IP67
Specifications
Alternate Part Number 11078679, *Includes Tariff
Connection w/Cable
Material Nickel Plated Brass
Normally Open/Closed Normally Open (NO)
NPN or PNP NPN (Sink)
All - Specific Ratings IP67
Series IFRM Series
Size 8mm
Type of Sensor Inductive
All - Voltage 10-30VDC
Warranty 3 Years
Weight .5

Features Include:

  • Nominal Sensing Distance Sn: 8 mm
  • Mounting Type: Quasi-Flush
  • Hysteresis: 3 - 20% of Sr
  • Output Indicator: LED red
  • Switching Frequency:< 500 kHz
  • Voltage Supply Range +Vs:10 - 30 VDC
  • Current Consumption Max. (no load): 10 mA
  • Voltage Drop: < 2 VDC
  • Output Current: < 200 mA
  • Material (sensing face): PBT
  • Housing Material: Nickel Plated Brass
Downloads
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Baumer

IFRM 18N17A5/S14L

Inductive Proximity Sensor, Ø18x45mm, Quasi-Flush, 10-30VDC, 8mm Range, NPN NO, M12 Connector, IP67, Effective April 14th, 2025: This Item Includes a 6% Tariff That The Manufacturer Has Added

$96.32

Baumer

IFRM 05P35A1/L

Inductive Proximity Sensor, Ø5x25mm, F;lush, 10-30VDC, 1mm Range, PNP NC, 2m Cable, IP67, Effective April 14th, 2025: This Item Includes a 6% Tariff That The Manufacturer Has Added

$168.56

Baumer

IFRM 12N3701/L

Inductive Proximity Sensor, Ø12x30.4mm, Flush, 10-30VDC, 4mm Range, NPN NC, 2m Cable, IP67, Effective April 14th, 2025: This Item Includes a 6% Tariff That The Manufacturer Has Added

$120.41

Baumer

IFRM 08P1701/L

Inductive Proximity Sensor, Ø8x30mm, Flush, 10-30VDC, 2mm Range, PNP NO, 2m Cable, IP67, Effective April 14th, 2025: This Item Includes a 6% Tariff That The Manufacturer Has Added

$138.92

Baumer

IFRM 03N3501/L

Inductive Proximity Sensor, Ø3x22mm, Flush, 10-30VDC, 0.8mm Range, NPN NC, 2m Cable, IP67, Effective April 14th, 2025: This Item Includes a 6% Tariff That The Manufacturer Has Added

$222.28

Baumer

IFRM 06P3701/L

Inductive Proximity Sensor, Ø6.5x30mm, Flush, 10-30VDC, 2mm Range, PNP NC, 2m Cable, IP67, Effective April 14th, 2025: This Item Includes a 6% Tariff That The Manufacturer Has Added

$137.08

Baumer

IFRM 06N17A1/L

Inductive Proximity Sensor, Ø6.5x40mm, Flush, 10-30VDC, 2mm Range, NPN NO, 2m Cable, IP67, Effective April 14th, 2025: This Item Includes a 6% Tariff That The Manufacturer Has Added

$135.22

Baumer

IFRM 18P17A4/L

Inductive Proximity Sensor, Ø18x65mm, Quasi-Flush, 10-30VDC, 8mm Range, PNP NO, 2m Cable, IP67, Effective April 14th, 2025: This Item Includes a 6% Tariff That The Manufacturer Has Added

$114.85

Baumer

IFRM 18P37A5/L

Inductive Proximity Sensor, Ø18x35mm, Quasi-Flush, 10-30VDC, 8mm Rnage, PNP NC, 2m Cable, IP67, Effective April 14th, 2025: This Item Includes a 6% Tariff That The Manufacturer Has Added

$114.85
