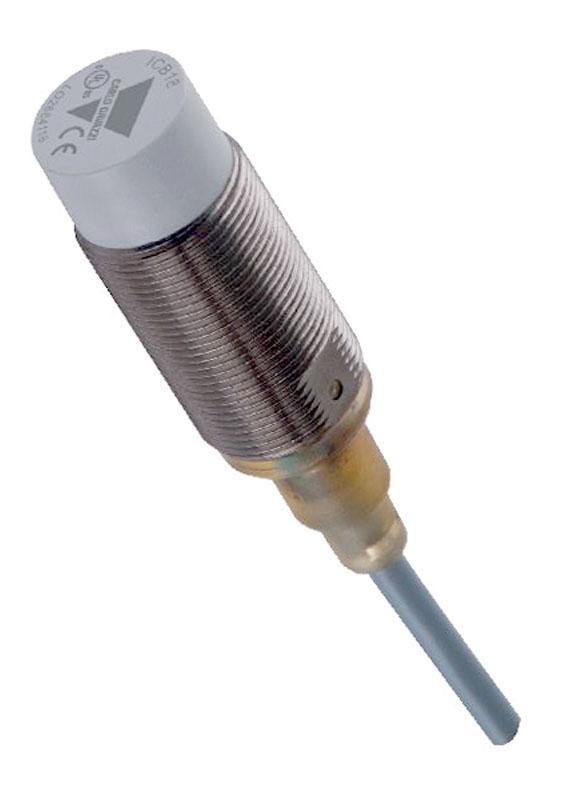

Carlo Gavazzi
ICB18S30N14POM1
Inductive Proximity Sensor, Ø18mm, Non-Flush, 10-36VDC, 14mm Range, PNP NO, Short, M12 Plug
$68.00
Product image is representative only, please verify specifications.
ICB18S30N14PO
Alt: Minimum Order 10 Pieces, Price per Piece
$68.00
Inductive Proximity Sensor, Ø18mm, Non-Flush, 10-36VDC, 14mm Range, 200mA PNP NO, Short, 2mCable
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 10 units
Description
Inductive Proximity Sensor, Ø18mm, NonFlush, 10-36VDC, 14mm Range, 200mA PNP NO, Short, 2mCable
Specifications
Alternate Part Number
Minimum Order 10 Pieces, Price per Piece
Connection
w/Cable
Material
Nickel Plated Brass
Normally Open/Closed
Normally Open (NO)
NPN or PNP
PNP (Source)
All - Specific Ratings
UL508
Series
ICB Series
Shielded/Unshielded
Unshielded - Non-Flush
Size
18mm
Type of Sensor
Inductive
All - Voltage
36VDC
Warranty
1 Year
Weight
0.5
Features Include:
- Sensing distance: 14 mm
- Non-flush mountable
- Short version
- Rated operational voltage (Ub): 10 - 36 VDC
- Output: DC 200 mA, PNP
- Normally open
- LED indication for output ON, short-circuit and overload
- Protection: reverse polarity, short circuit, transients
- Cable or M12 plug versions
- According to IEC 60947-5-2
- Setup indicator
- Laser engraved on front cap, permanently legible
- CSA certified for Hazardous Locations
