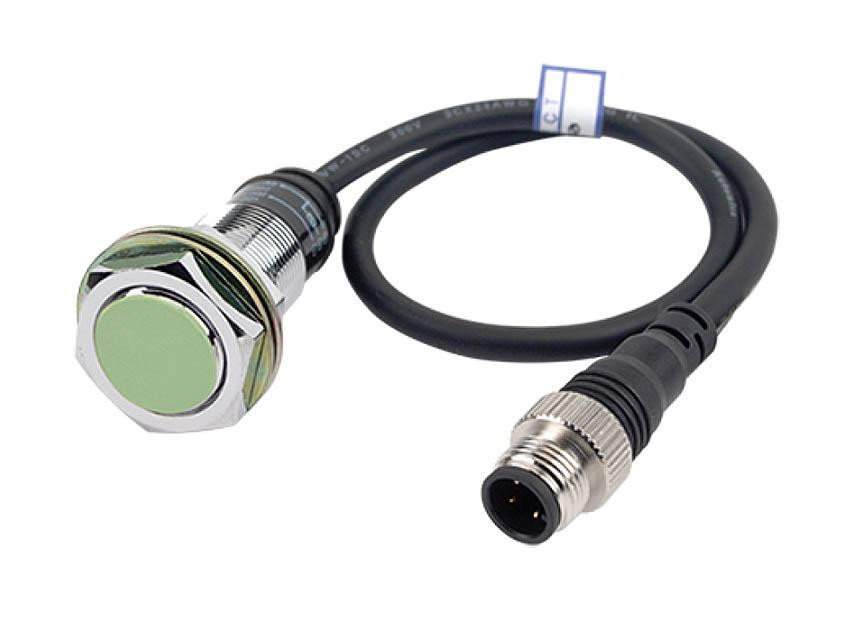

PR18-5AO

If you are looking for a cost-effective inductive proximity switch, look no further!

The PR series is IP67 and available in 8mm (PR08), 12mm (PR12), 18mm (PR18) and 30mm PR30). They are also available in DC 2-wire, DC 3-wire and AC 2-wire.

Most of these sensors can ship in 1 to 2 days!

Features Include:

• Wire type and power: AC 2-wire type, 100-240 VAC
• Sensing Side Diameter: M18
• Sensing Distance: 5 mm
• Installation: Shield (flush)
• Standard Sensing Target: 18 x 18 x 1mm (iron)
• Response Frequency: 20Hz
• Current Specification: Leakage Current: Max. 2.5mA
• Control Output: Normally Open
• Cable Standard/Material: Standard Cable
• Body Length: Standard Type
• Environment - Ambient Temperature: -25 to 70°, storage: -30 to 80°
• Environment - Ambient Humidity: 35 to 95% RH, storage: 35 to 95% RH
• Hysteresis (distance): Max. 10% of sensing distance
• Insulation Type: Double insulation or reinforced insulation(mark: dielectric strength between the measuring input part and the power part: 1kV)
