IFRM 12N1704/S14L
Alt: 10160259
$92.62

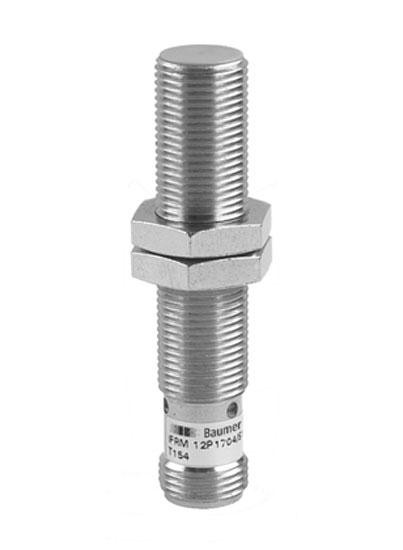

Inductive Proximity Sensor, Ø12x60mm, Flush, 10-30VDC, 4mm Range, NPN NO, M12 Connector, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø12x60mm, Flush, 10-30VDC, 4mm Range, NPN NO, M12 Connector, IP67
Specifications
Alternate Part Number
10160259
Connection
Quick Disconnect
Material
Nickel Plated Brass
Normally Open/Closed
Normally Open (NO)
NPN or PNP
NPN (Sink)
All - Specific Ratings
IP67
Series
IFRM Series
Shielded/Unshielded
Shielded - Flush
Size
12mm
Type of Sensor
Inductive
All - Voltage
10-30VDC
Warranty
3 Years
Weight
.5
Features Include:
- Nominal Sensing Distance Sn: 4 mm
- Mounting Type: Flush
- Hysteresis: 3 - 20% of Sr
- Output Indicator: 3 port LED red
- Switching Frequency:< 2 kHz
- Voltage Supply Range +Vs:10 - 30 VDC
- Current Consumption Max. (no load): 10 mA
- Voltage Drop: < 2 VDC
- Output Current: < 200 mA
- Material (sensing face): PBT
- Housing Material: Nickel Plated Brass
