Baumer
IFRM 12N3701/L
Inductive Proximity Sensor, Ø12x30.4mm, Flush, 10-30VDC, 4mm Range, NPN NC, 2m Cable, IP67
$119.00
IFRM 12N3701/S35L
Alt: 11051240
$99.00
Inductive Proximity Sensor, Ø12x50mm, Flush, 12-30VDC, 4mm Range, NPN NC, M8 Connector, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

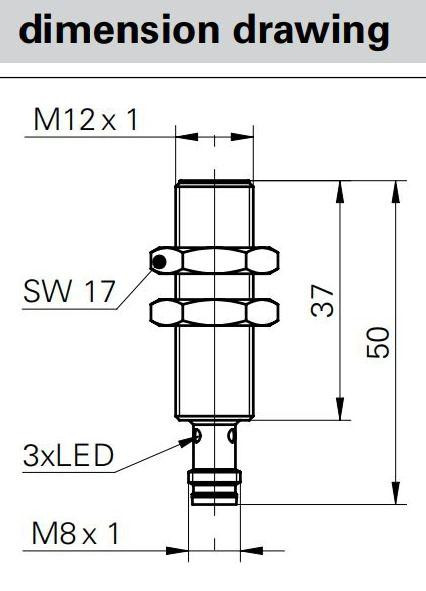

Inductive Proximity Sensor, Ø12x50mm, Flush, 12-30VDC, 4mm Range, NPN NC, M8 Connector, IP67
Features Include:
- Nominal Sensing Distance Sn: 4 mm
- Mounting Type: Flush
- Hysteresis: 3 - 20% of Sr
- Output Indicator: 3 port LED red
- Switching Frequency:< 2 kHz
- Voltage Supply Range +Vs:12 - 30 VDC
- Current Consumption Max. (no load): 18 mA
- Voltage Drop: < 3 VDC
- Output Current: < 200 mA
- Material (sensing face): PBT
- Housing Material: Nickel Plated Brass
Need More Information?
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
IFRM 12N3701/S14L
Inductive Proximity Sensor, Ø12x50mm, Flush, 10-30VDC, 4mm Range, NPN NC, M12 Connector, IP67
$99.00
Baumer
IFRM 08P17A1/S35L
Inductive Proximity Sensor, Ø8x46mm, Flush, 10-30VDC, 2mm Range, PNP NO, M8 Connector, IP67, Generally Available to Ship in 3 to 5 Days
$119.00
Baumer
IFRM 06N37A1/S35L
Inductive Proximity Sensor, Ø6.5x46mm, Flush, 10-30VDC, 2mm Range, NPN NC, M8 Connector, IP67
$124.00
Baumer
IFRM 04N37A1/S35L
Inductive Proximity Sensor, Ø4x45mm, Flush, 10-30VDC, 1.6mm Range, NPN NC, M8 Connector, IP67
$154.00
Baumer
IFRM 05P37A1/S35L
Inductive Proximity Sensor, Ø5x45mm, Flush, 10-30VDC, 1.6mm Range, PNP NC, M8 Connector, IP67
$144.00
Baumer
IFRM 05N17A1/S35L
Inductive Proximity Sensor, Ø5x45mm, Flush, 10-30VDC, 1.6mm Range, NPN NO, M8 Connector, IP67
$144.00
Baumer
IFRM 05P17A1/S35L
Inductive Proximity Sensor, Ø5x45mm, Flush, 10-30VDC, 1.6mm Range, PNP NO, M8 Connector, IP67
$144.00
Baumer
IFRM 06N37A4/S35L
Inductive Proximity Sensor, Ø6.5x56mm, Flush, 10-30VDC, 2mm Range, NPN NC, M8 Connector, IP67
$129.00
