Baumer

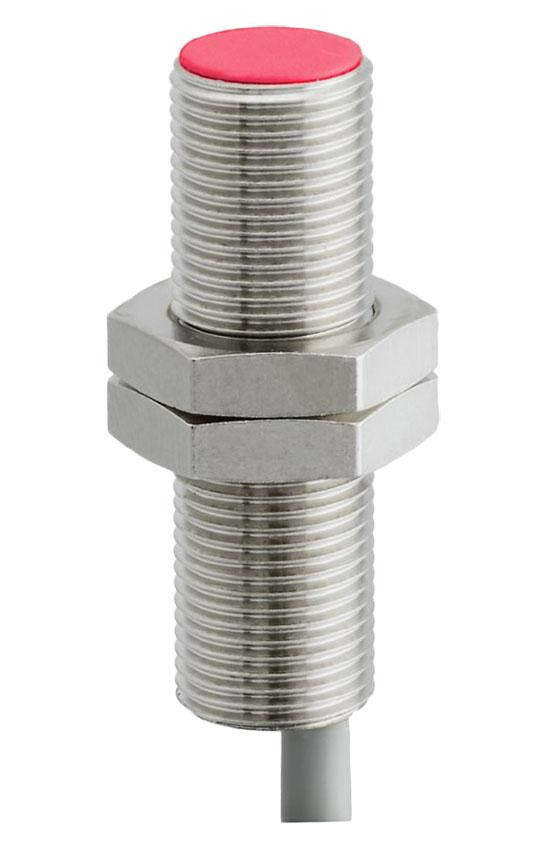

IGYX 12N17B3/L
Inductive Proximity Sensor, Ø12x40mm, Flush, 10-30VDC, 4mm Range, NPN NO, 2m Cable, IP67
$49.00
Available Now!
Available Now!
(8 in stock)
IGYX 12N17B3/S14L
Alt: 11084738
$45.00
Inductive Proximity Sensor, Ø12x50mm, Flush, 10-30VDC, 4mm Range, NPN NO, M12 Connector, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.
Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.
Specifications
Alternate Part Number
11084738
Connection
M12, Straight
Material
Nickel Plated Brass
Normally Open/Closed
Normally Open (NO)
NPN or PNP
NPN (Sink)
All - Specific Ratings
IP67
Series
IGYX Series
Shielded/Unshielded
Shielded - Flush
Size
12mm
Type of Sensor
Inductive
All - Voltage
10-30VDC
Quantity
8
Warranty
3 Years
Weight
0.5
Features Include:
- Switching frequency: 1.5 kHz
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max.: (no load): 15 mA
- Output circuit: NPN make function (NO)
- Voltage drop Vd: < 2.5 VDC
- Output current: < 200 mA
- Mounting type: Flush
- Nominal sensing distance Sn: 4 mm
- Assured sensing distance Sa: 3.2 mm
- Temperature drift: ± 10 % of Sr (0 - +60 °C)
- Hysteresis: 3 - 20 % of Sr
- Output indicator: 3 port LED red
- Type: Cylindrical threaded
- Material (sensing face): PBT, red
- Housing material: Brass nickel plated
- Dimension: 12 mm
- Housing length: 50 mm
- Connection types: Connector M12
- Tightening torque max.: 10 Nm<
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer

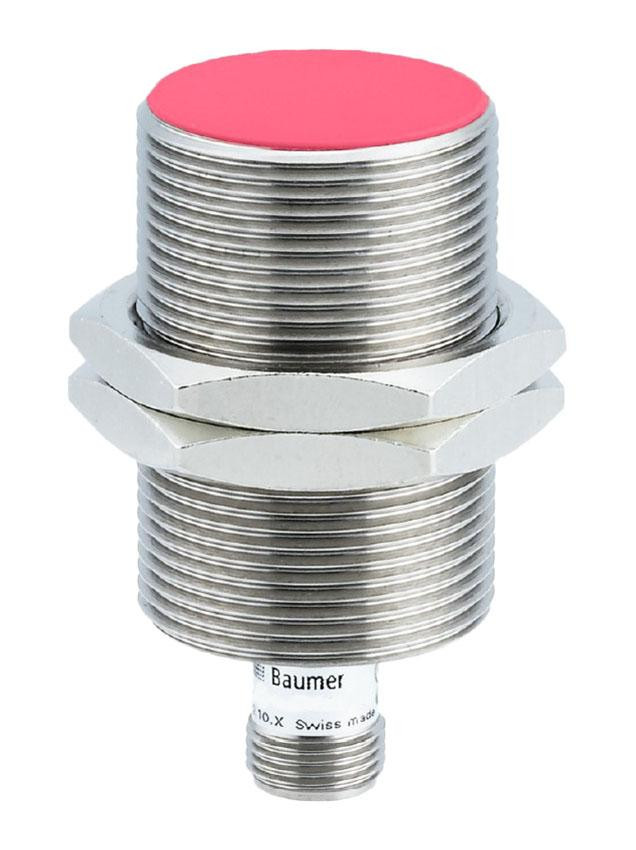

IGYX 30P17B3/S14L
Inductive Proximity Sensor, Ø30x60mm, Flush, 10-30VDC, 15mm Range, PNP NO, M12 Connector, IP67, Generally Available to Ship in 3 to 5 Days
$61.00
Baumer
IGYX 30N37B3/S14L
Inductive Proximity Sensor, Ø30x60mm, Flush, 10-30VDC, 15mm Range, NPN NC, M12 Connector, IP67
$61.00
Baumer
IGYX 30N17B3/S14L
Inductive Proximity Sensor, Ø30x60mm, Flush, 10-30VDC, 15mm Range, NPN NO, M12 Connector, IP67, Generally Available to Ship in 3 to 5 Days
$61.00
Baumer

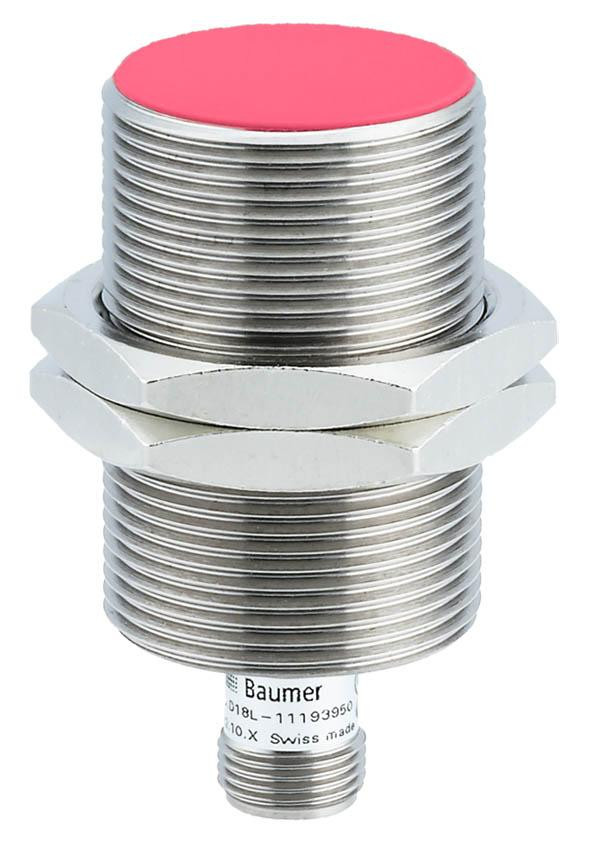

IGYX 18P37B3/S14L
Inductive Proximity Sensor, Ø18x60mm, Quasi-Flush, 10-30VDC, 8mm Range, PNP NC, M12 Connector, IP67
$49.00
Baumer
IGYX 18P17B3/S14L
Inductive Proximity Sensor, Ø18x60mm, Flush, 10-30VDC, 8mm Range, PNP NO, M12 Connector, IP67, Generally Available to Ship in 3 to 5 Days
$49.00
Baumer
IGYX 18N37B3/S14L
Inductive Proximity Sensor, Ø18x60mm, Quasi-Flush, 10-30VDC, 8mm Range, NPN NC, M12 Connector, IP67
$49.00
Baumer
IGYX 12P17B1/S14L
Inductive Proximity Sensor, Ø12x60mm, Flush, 10-30VDC, 4mm Range, PNP NO, M12 Connector, IP67
$45.00
Baumer
IGYX 12N37B3/S14L
Inductive Proximity Sensor, Ø12x50mm, Flush, 10-30VDC, 4mm Range, NPN NC, M12 Connector, IP67
$45.00
