Baumer
IFRM 12N1701/S14L
Inductive Proximity Sensor, Ø12x50mm, Flush, 10-30VDC, 4mm Range, NPN NO, M12 Connector, IP67, Generally Available to Ship in 3 to 5 Days
$99.00
IFRM 12P3703/S14L
Alt: 10229703
$104.00

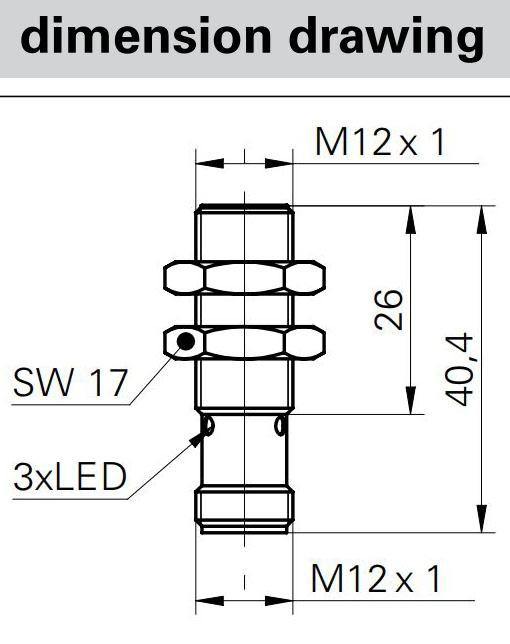

Inductive Proximity Sensor, Ø12x40.4mm, Flush, 10-30VDC, 4mm Range, PNP NC, M12 Connector, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø12x40.4mm, Flush, 10-30VDC, 4mm Range, PNP NC, M12 Connector, IP67
Features Include:
- Nominal Sensing Distance Sn: 4 mm
- Mounting Type: Flush
- Hysteresis: 3 - 20% of Sr
- Output Indicator: 3 port LED red
- Switching Frequency:< 2 kHz
- Voltage Supply Range +Vs:10 - 30 VDC
- Current Consumption Max. (no load): 10 mA
- Voltage Drop: < 2 VDC
- Output Current: < 200 mA
- Material (sensing face): PBT
- Housing Material: Nickel Plated Brass
