$430.73
IFFM 08P3703/O2S35L
Alt: 10229458, *Includes 6% Tariff from Manufacturer
$163.01

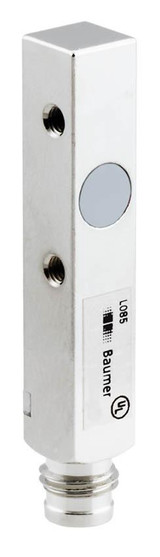

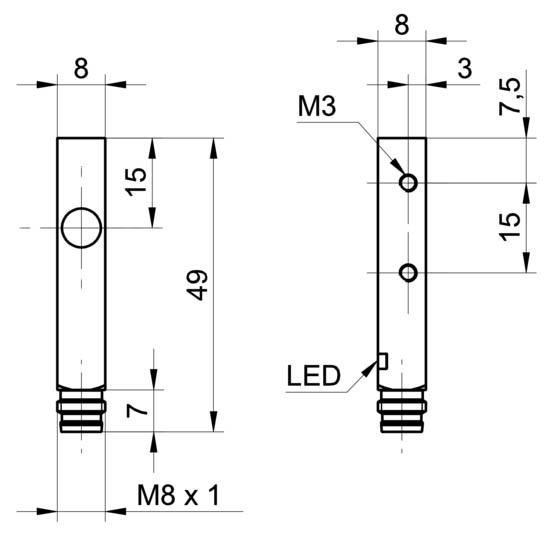

Inductive Proximity Sensor, 8x49mm Rect., Flush, 10-30VDC, 2mm Range, PNP NC, M8 Connector, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, 8x49mm Rect., Flush, 10-30VDC, 2mm Range, PNP NC, M8 Connector, IP67
Specifications
Alternate Part Number
10229458, *Includes 6% Tariff from Manufacturer
Connection
M8, Straight
Material
Nickel Plated Brass
Normally Open/Closed
Normally Closed (NC)
NPN or PNP
PNP (Source)
All - Specific Ratings
IP67
Series
IFFM Series
Shielded/Unshielded
Shielded - Flush
Size
Rectangular
Type of Sensor
Inductive
All - Voltage
10-30VDC
Warranty
3 Years
Weight
.5
Features Include:
- Nominal Sensing Distance Sn: 2 mm
- Current Consumption Max. (no load): 12 mA
- PNP break function (NC)
- Connection: Connector M8
- Output Indicator: LED red
- Operating Temperature: -25 - +75 °C
