Baumer
IFFM 08N3703/O2S35L
Inductive Proximity Sensor, Miniature, Flush, 6-36VDC, 2mm Sensing Distance Sn, NPN, NC, M8 Connector, Brass Nickel Plated Housing, PBT Sensing Face, Rectangular 8 x 49mm, -25° to +75°C, IP67
$163.01
IFFM 08N3703/O1L
Alt: 10228207, *Includes 6% Tariff from Manufacturer
$138.92

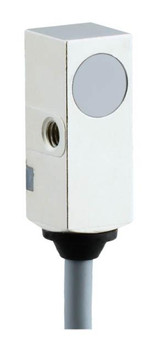

Inductive Proximity Sensor, Subminiature, Flush, 6-36VDC, 2mm Sensing Distance Sn, NPN, NC, 2m Cable, Die-Cast Zinc Nickel Plated Housing, PBT Sensing Face, Rectangular 8 x 20mm, -25° to +75°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, 8x20mm Rect., Flush, 10-30VDC, 2mm Range, NPN NC, 2m Cable, IP67
Specifications
Alternate Part Number
10228207, *Includes 6% Tariff from Manufacturer
Connection
w/Cable
Material
Die-Cast Zinc Nickel Plated
Normally Open/Closed
Normally Closed (NC)
NPN or PNP
NPN (Sink)
All - Specific Ratings
IP67
Series
IFFM Series
Shielded/Unshielded
Shielded - Flush
Size
Rectangular
Type of Sensor
Inductive
All - Voltage
6VDC, 36VDC
Warranty
3 Years
Weight
.5
Features Include:
- Nominal Sensing Distance Sn: 2 mm
- Current Consumption Max. (no load): 12 mA
- NPN break function (NC)
- Connection: Cable, 2m
- Output Indicator: LED red
- Operating Temperature: -25 - +75 °C
