Baumer
IFFM 08N1701/O1L
Inductive Proximity Sensor, Miniature, Flush, 6-36VDC, 2mm Sensing Distance Sn, NPN, NO, 2m Cable, Die-Cast Zinc Nickel Plated Housing, PBT Sensing Face, Rectangular 8 x 38.5mm, -25° to +75°C, IP67
$131.06
IFFM 06N35A1/O1L
Alt: 10146225
$186.98
Inductive Proximity Sensor, Miniature, Flush, 6-30VDC, 1mm Sensing Distance Sn, NPN, NC, 2m Cable, Brass Nickel Plated Housing, LCP Sensing Face, Rectangular 6 x 30mm, -25° to +75°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Choose Your Motor Starter Solution
Build your motor starter system with knowledgeable guidance on selecting your components, including starters, contactors, relays, and accessories.
Description

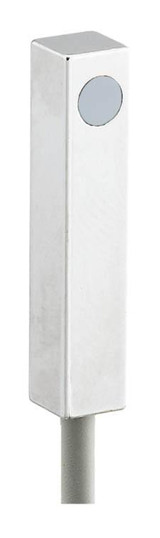

Inductive Proximity Sensor, 6x30mm Rect., Flush, 10-30VDC, 1mm Range, NPN NC, 2m Cable, IP67
Specifications
Alternate Part Number
10146225
Connection
w/Cable
Material
Nickel Plated Brass
Normally Open/Closed
Normally Closed (NC)
NPN or PNP
NPN (Sink)
All - Specific Ratings
IP67
Series
IFFM Series
Shielded/Unshielded
Shielded - Flush
Size
Rectangular
Type of Sensor
Inductive
All - Voltage
DC
Warranty
3 Years
Weight
.5
Features Include:
- Nominal Sensing Distance Sn: 1 mm
- Current Consumption Max. (no load): 12 mA
- NPN break function (NC)
- Connection: Cable, 2m
- Output Indicator: 2 port LED red
- Operating Temperature: -25 - +75 °C
