Baumer
IFFM 06P35A3/O1L
Inductive Proximity Sensor, Subminiature, Flush, 6-30VDC, 1mm Sensing Distance Sn, PNP, NC, 2m Cable, Brass Nickel Plated Housing, LCP Sensing Face, Rectangular 6 x 20mm, -25° to + 75°C, IP67
$199.45
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!
IFFM 06P35A3/O1S05L
Alt: 10146215
$204.46
Inductive Proximity Sensor, Subminiature, Flush, 6-30VDC, 1mm Sensing Distance Sn, PNP, NC, M5 Connector, Brass Nickel Plated Housing, LCP Sensing Face, Rectangular 6 x 24mm, -25° to +75°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

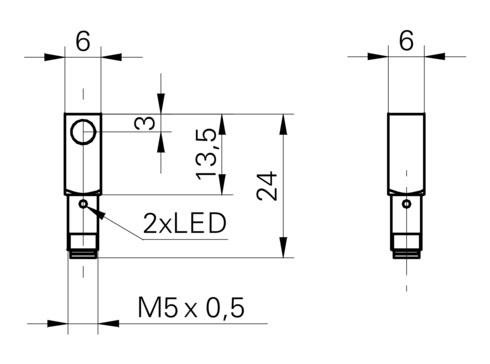

Inductive Proximity Sensor, 6x24mm Rect., Flush, 10-30VDC, 1mm Range, PNP NC, M5 Connector, IP67
Specifications
Alternate Part Number
10146215
Connection
M5, Straight
Material
Nickel Plated Brass
Normally Open/Closed
Normally Closed (NC)
NPN or PNP
PNP (Source)
All - Specific Ratings
IP67
Series
IFFM Series
Shielded/Unshielded
Shielded - Flush
Size
Rectangular
Type of Sensor
Inductive
All - Voltage
DC
Warranty
3 Years
Weight
.5
Features Include:
- Nominal Sensing Distance Sn: 1 mm
- Current Consumption Max. (no load): 12 mA
- PNP break function (NC)
- Connection: Cable, 2 m
- Output Indicator: 2 port LED red
- Operating Temperature: -25 - +75 °C
