IFFM 06P15A3/O1S05L

IFFM 06P15A3/O1S05L

Alt: 10146214, *Includes Tariff

$216.73

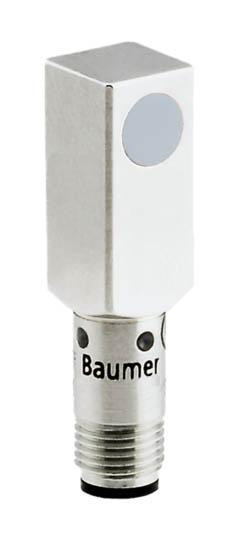

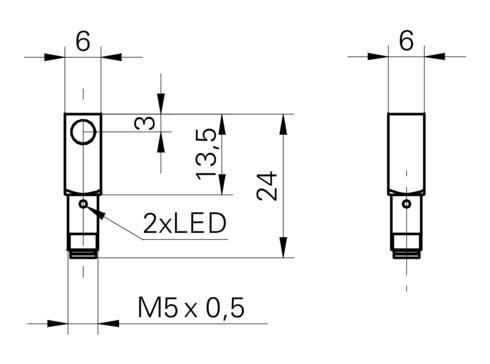

Inductive Proximity Sensor, Subminiature, Flush, 6-30VDC, 1mm Sensing Distance Sn, PNP, NO, M5 Connector, Brass Nickel Plated Housing, LCP Sensing Face, Rectangular 6 x 24mm, -25° to +75°C, IP67, 4/14/25: 10% Tariff from Mfg Included

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Inductive Proximity Sensor, 6x24mm Rect., Flush, 10-30VDC, 1mm Range, PNP NO, M5 Connector, IP67
Specifications
Alternate Part Number 10146214, *Includes Tariff
Connection M5, Straight
Material Nickel Plated Brass
Normally Open/Closed Normally Open (NO)
NPN or PNP PNP (Source)
All - Specific Ratings IP67
Series IFFM Series
Shielded/Unshielded Shielded - Flush
Size Rectangular
Type of Sensor Inductive
All - Voltage DC
Warranty 3 Years
Weight .5

Features Include:

  • Nominal Sensing Distance Sn: 1 mm
  • Current Consumption Max. (no load): 12 mA
  • PNP make function (NO)
  • Connection: Connector M5
  • Output Indicator: 2 port LED red
  • Operating Temperature: -25 - +75 °C
