Baumer
IFFM 08N1701/O1L
Inductive Proximity Sensor, Miniature, Flush, 6-36VDC, 2mm Sensing Distance Sn, NPN, NO, 2m Cable, Die-Cast Zinc Nickel Plated Housing, PBT Sensing Face, Rectangular 8 x 38.5mm, -25° to +75°C, IP67
$134.00
IFFM 04P3501/O1L
Alt: 10142681
$209.00

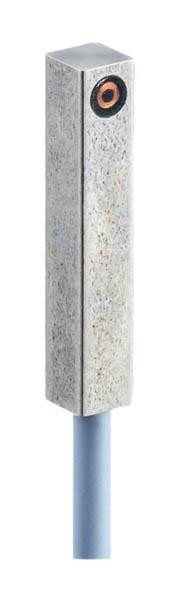

Inductive Proximity Sensor, Subminiature, Flush, 10-30VDC, 0.8mm Sensing Distance Sn, PNP, NC, 2m Cable, Stainless Steel Housing, EP Sensing Face, Rectangular 4 x 22mm, -25° to +75°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Configure Your Optimal AC Drive Solution
Build a complete solution with expert guidance on AC drives and compatible components including motors, circuit breakers and protection equipment
Description
Inductive Proximity Sensor, 4x22mm Rect., Flush, 10-30VDC, 0.8mm Range, PNP NC, 2m Cable, IP67
Specifications
Alternate Part Number
10142681
Connection
w/Cable
Material
Stainless Steel
Normally Open/Closed
Normally Closed (NC)
NPN or PNP
PNP (Source)
All - Specific Ratings
IP67
Series
IFFM Series
Shielded/Unshielded
Shielded - Flush
Size
Rectangular
Type of Sensor
Inductive
All - Voltage
10-30VDC
Warranty
3 Years
Weight
0.5000
Features Include:
- Nominal Sensing Distance Sn: 0.8 mm
- Current Consumption Max. (no load): 12 mA
- PNP break function (NC)
- Connection: Cable, 2 m
- Output Indicator: LED red (backside)
- Operating Temperature: -25 - +75 °C
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
IFFM 08P3702/O1L
Inductive Proximity Sensor, 8x28.5mm Rect., Flush, 10-30VDC, 2mm Range, PNP NC, 2m Cable, IP67
$189.00
$159.00
Baumer
IFFM 08N3703/O1L
Inductive Proximity Sensor, Subminiature, Flush, 6-36VDC, 2mm Sensing Distance Sn, NPN, NC, 2m Cable, Die-Cast Zinc Nickel Plated Housing, PBT Sensing Face, Rectangular 8 x 20mm, -25° to +75°C, IP67
$139.00
Baumer
IFFM 06P35A1/O1L
Inductive Proximity Sensor, Miniature, Flush, 6-30VDC, 1mm Sensing Distance Sn, PNP, NC, 2m Cable, Brass Nickel Plated Housing, LCP Sensing Face, Rectangular 6 x 30mm, -25° to +75°C, IP67
$199.00
Baumer
IFFM 06N15A1/O1L
Inductive Proximity Sensor, Miniature, Flush, 6-30VDC, 1mm Sensing Distance Sn, NPN, NO, 2m Cable, Brass Nickel Plated Housing, LCP Sensing Face, Rectangular 6 x 30mm, -25° to +75°C, IP67
$199.00
Baumer
IFFM 04N1501/O1L
Inductive Proximity Sensor, Subminiature, Flush, 10-30VDC, 0.8mm Sensing Distance Sn, NPN, NO, 2m Cable, Stainless Steel Housing, EP Sensing Face, Rectangular 4 x 22mm, -25° to +75°C, IP67
$209.00
Baumer
IFFM 06P35A3/O1L
Inductive Proximity Sensor, Subminiature, Flush, 6-30VDC, 1mm Sensing Distance Sn, PNP, NC, 2m Cable, Brass Nickel Plated Housing, LCP Sensing Face, Rectangular 6 x 20mm, -25° to + 75°C, IP67
$199.00
Baumer
IFFM 06N15A3/O1L
Inductive Proximity Sensor, Subminiature, Flush, 6-30VDC, 1mm Sensing Distance Sn, NPN, NO, 2m Cable, Brass Nickel Plated Housing, LCP Sensing Face, Rectangular 6 x 20mm, -25° to +75°C, IP67
$199.00
