IFFM 04N3501/O1L
Alt: 10142682
$204.46

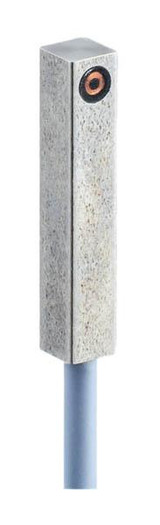

Inductive Proximity Sensor, Subminiature, Flush, 10-30VDC, 0.8mm Sensing Distance Sn, NPN, NC, Stainless Steel Housing, EP Sensing Face, 2m Cable, -25° to +75°C, Rectangular 4 x 22mm, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, 4x22mm Rect., Flush, 10-30VDC, 0.8mm Range, NPN NC, 2m Cable, IP67
Specifications
Alternate Part Number
10142682
Connection
w/Cable
Material
Stainless Steel
Normally Open/Closed
Normally Closed (NC)
NPN or PNP
NPN (Sink)
All - Specific Ratings
IP67
Series
IFFM Series
Shielded/Unshielded
Shielded - Flush
Size
Rectangular
Type of Sensor
Inductive
All - Voltage
10-30VDC
Warranty
3 Years
Weight
.5
Features Include:
- Output Indicator: LED red (backside)
- Current Consumption Max. (no load): 12 mA
- 0.8 mm
- NPN break function (NC)
- Cable, 2 m
- -25 - +75 °C
- IP 67
